Toshiba Semiconductor and Storage SSM6P15FULFTR-ND,SSM6P15FULFCT-ND,SSM6P15FULFDKR-ND
Sku: TT-DKEY-SSM6P15FULFTR-ND,SSM6P15FULFCT-ND,SSM6P15FULFDKR-ND
₹46.08
Features
- Shipping in 10-12 Working Days
Description of product
MOSFET 2P-CH 30V 0.1A US6
Product Attributes:
| Series | - |
| Product Status | Active |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 P-Channel (Dual) |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 100mA |
| Rds On (Max) @ Id, Vgs | 12Ohm @ 10mA, 4V |
| Vgs(th) (Max) @ Id | 1.7V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Input Capacitance (Ciss) (Max) @ Vds | 9.1pF @ 3V |
| Power - Max | 200mW (Ta) |
| Operating Temperature | 150°C |
| Mounting Type | Surface Mount |

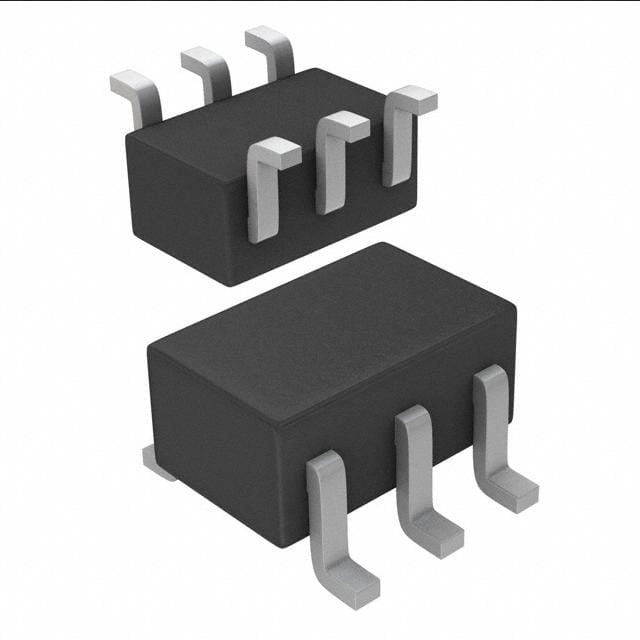

| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | US6 |
| Grade | - |
| Qualification | - |
