669a48a7880003ec330a7e2a Alpha & Omega Semiconductor Inc. 785-AOSD21313CTR-ND,785-AOSD21313CCT-ND,785-AOSD21313CDKR-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/669a48a7880003ec330a7e3c/8-soic.jpg

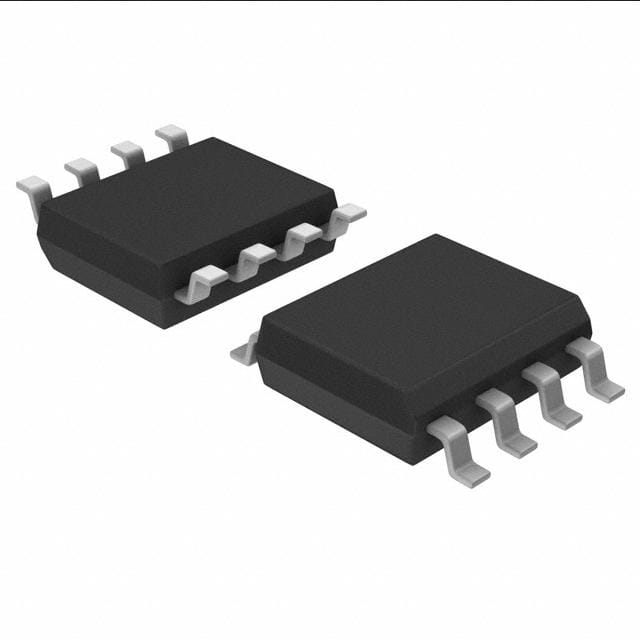

MOSFET 2P-CH 30V 5.7A 8SOIC

Product Attributes:

Series -
Product Status Active
Technology MOSFET (Metal Oxide)
Configuration 2 P-Channel (Dual)
FET Feature -
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25°C 5.7A (Ta)
Rds On (Max) @ Id, Vgs 32mOhm @ 5.7A, 10V
Vgs(th) (Max) @ Id 2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 33nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds 1100pF @ 15V
Power - Max 1.7W
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Grade -
Qualification -
TT-DKEY-785-AOSD21313CTR-ND,785-AOSD21313CCT-ND,785-AOSD21313CDKR-ND
in stock INR
Alpha & Omega Semiconductor Inc.
1 1
Alpha & Omega Semiconductor Inc. 785-AOSD21313CTR-ND,785-AOSD21313CCT-ND,785-AOSD21313CDKR-ND

Alpha & Omega Semiconductor Inc. 785-AOSD21313CTR-ND,785-AOSD21313CCT-ND,785-AOSD21313CDKR-ND

Sku: TT-DKEY-785-AOSD21313CTR-ND,785-AOSD21313CCT-ND,785-AOSD21313CDKR-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

MOSFET 2P-CH 30V 5.7A 8SOIC

Product Attributes:

Series -
Product Status Active
Technology MOSFET (Metal Oxide)
Configuration 2 P-Channel (Dual)
FET Feature -
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25°C 5.7A (Ta)
Rds On (Max) @ Id, Vgs 32mOhm @ 5.7A, 10V
Vgs(th) (Max) @ Id 2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 33nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds 1100pF @ 15V
Power - Max 1.7W
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Grade -
Qualification -
