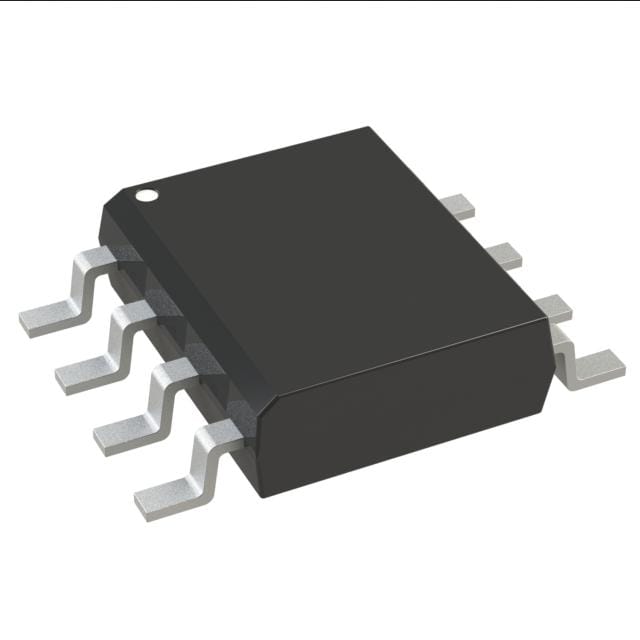

669a489fa1358d64dd9d73cf Diodes Incorporated DMHC3025LSD-13DITR-ND,DMHC3025LSD-13DICT-ND,DMHC3025LSD-13DIDKR-ND https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/669a48a0a1358d64dd9d73f2/31percent7e8so-3-9percent7epercent7e8.jpg

MOSFET 2N/2P-CH 30V 6A/4.2A 8SO

Product Attributes:

Series -
Product Status Active
Technology MOSFET (Metal Oxide)
Configuration 2 N and 2 P-Channel (Full Bridge)
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25°C 6A, 4.2A
Rds On (Max) @ Id, Vgs 25mOhm @ 5A, 10V, 50mOhm @ 5A, 10V
Vgs(th) (Max) @ Id 2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 11.7nC @ 10V, 11.4nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds 590pF @ 15V, 631pF @ 15V
Power - Max 1.5W (Ta)
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SO
Grade -
Qualification -
TT-DKEY-DMHC3025LSD-13DITR-ND,DMHC3025LSD-13DICT-ND,DMHC3025LSD-13DIDKR-ND
in stock INR
Diodes Incorporated
1 1
Diodes Incorporated DMHC3025LSD-13DITR-ND,DMHC3025LSD-13DICT-ND,DMHC3025LSD-13DIDKR-ND

Diodes Incorporated DMHC3025LSD-13DITR-ND,DMHC3025LSD-13DICT-ND,DMHC3025LSD-13DIDKR-ND

Sku: TT-DKEY-DMHC3025LSD-13DITR-ND,DMHC3025LSD-13DICT-ND,DMHC3025LSD-13DIDKR-ND
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

MOSFET 2N/2P-CH 30V 6A/4.2A 8SO

Product Attributes:

Series -
Product Status Active
Technology MOSFET (Metal Oxide)
Configuration 2 N and 2 P-Channel (Full Bridge)
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25°C 6A, 4.2A
Rds On (Max) @ Id, Vgs 25mOhm @ 5A, 10V, 50mOhm @ 5A, 10V
Vgs(th) (Max) @ Id 2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 11.7nC @ 10V, 11.4nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds 590pF @ 15V, 631pF @ 15V
Power - Max 1.5W (Ta)
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SO
Grade -
Qualification -
