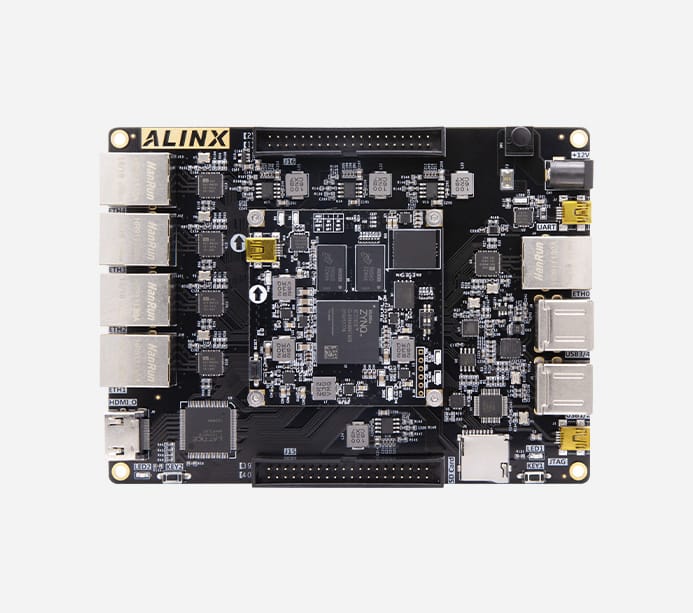

65741a9b8975c4851719391d XILINX Zynq7000 SoC FPGA Development Board XC7Z020 XC7Z020 https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/657419bf919a1b848b540d68/ax7021b-1.jpg

Main Parameters

FPGA Board AX7Z020

FPGA Chip XA7Z020-1CLG400I / XC7Z020-2CLG400I

Kernel Dual-Core ARM Cortex-A9

RAM DDR3 1GB, Data Rate 1066Mbps

Logic Cells 85K

Look Up Tables ( LUTs ) 53,200

CLB Flip-Flops 106,400

DSP Slices 220

Block RAM 4.9Mb

PS MIO 48

PL IO 120

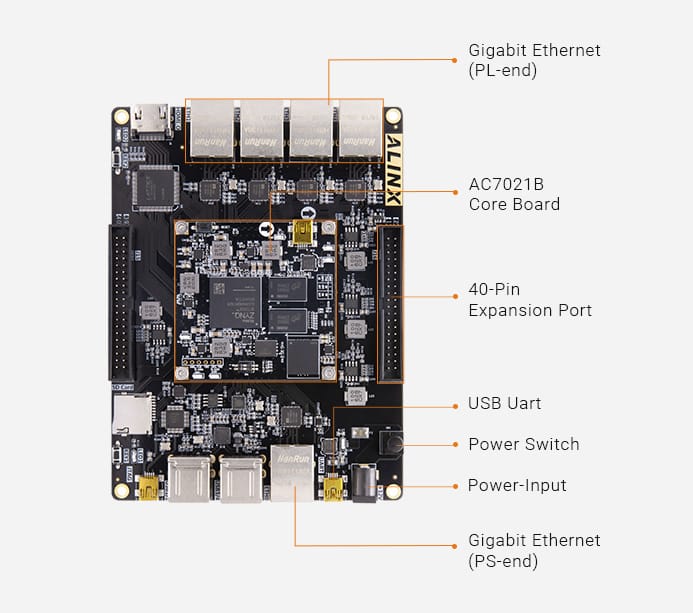

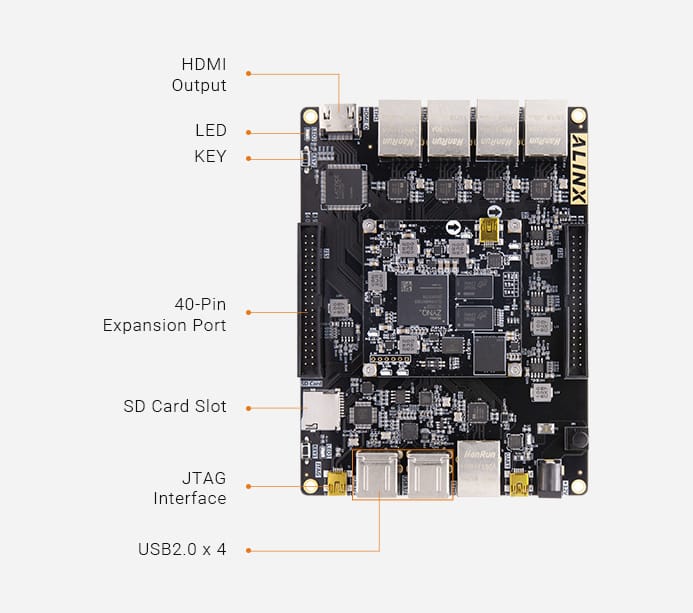

Interface and Function

JTAG JTAG Interface to Debug and Download ZYNQ System

Ethernet Interface 10 / 100 / 1000M Adaptive Ethernet with RJ-45 Interface Used for Data Exchange with Computers and Other Network Equipment

HDMI HDMI Image and Video Input / Output Interface, Supports 1080@60Hz

USB HOST Used for Connect USB Peripherals such as Mouse, Keyboard and U-Disk

USB Uart Used for OTG Communication with PC or USB Device

CAN Bus 2 CAN Bus Interface, for User CAN Communication Service

RS485 2 RS485 Interfaces, 485 communication Services for Users

AD Interface 2 SMA Interfaces, Used for Analog Signal Input and Voltage Conversion

Real Time Clock RTC with a Battery Holder, The Battery Model is CR1220(Voltage 3V, Buy it yourself)

QSPI FLASH 256Mbit, Used for Storage of System Files and User Data

LED 4 User LEDs, 2 Power LEDs, Cofiguration LED

key 4 User Keys, 1 Power Switch, 1 Reset Key

Crystal Oscillator 33.333Mhz, Provide Stable Clock Source for the PS System 50MHz, Provide Extra Clock for PL Logic

SD Card Slot Insert Micro SD TF Card, Store Operating System Image and File System

MIPI Interface Used for connect with MIPI Camera Module [available only for AX7Z020]

Expansion Port Two 40-Pin Expansion Ports ( 0.1 inch Pitch ), Expand the 68 IOs Connect with 7 inch LCD Screen, Camera, AD / DA and Other Modules.

EEPROM EEPROM 24LC04 with IIC Interface

Temperature Sensor Temperature Sensor chip LM75, used to detect the temperature of the environment around the board

Power Supply Parameters

Voltage Input +5V DC

Current Input Max. Current 2A

Rating Lable 5V / 2A

DATA SHEET



TT-XIL-AX7Z020/AX7Z020B
in stockINR
Xilinx
1 1
XILINX Zynq7000 SoC FPGA Development Board XC7Z020 XC7Z020

XILINX Zynq7000 SoC FPGA Development Board XC7Z020 XC7Z020

Sku: TT-XIL-AX7Z020/AX7Z020B

Product Enquiry

Sold By: tenettech
Features
  • Call for Pricing

Description of product

Main Parameters

FPGA Board AX7Z020

FPGA Chip XA7Z020-1CLG400I / XC7Z020-2CLG400I

Kernel Dual-Core ARM Cortex-A9

RAM DDR3 1GB, Data Rate 1066Mbps

Logic Cells 85K

Look Up Tables ( LUTs ) 53,200

CLB Flip-Flops 106,400

DSP Slices 220

Block RAM 4.9Mb

PS MIO 48

PL IO 120

Interface and Function

JTAG JTAG Interface to Debug and Download ZYNQ System

Ethernet Interface 10 / 100 / 1000M Adaptive Ethernet with RJ-45 Interface Used for Data Exchange with Computers and Other Network Equipment

HDMI HDMI Image and Video Input / Output Interface, Supports 1080@60Hz

USB HOST Used for Connect USB Peripherals such as Mouse, Keyboard and U-Disk

USB Uart Used for OTG Communication with PC or USB Device

CAN Bus 2 CAN Bus Interface, for User CAN Communication Service

RS485 2 RS485 Interfaces, 485 communication Services for Users

AD Interface 2 SMA Interfaces, Used for Analog Signal Input and Voltage Conversion

Real Time Clock RTC with a Battery Holder, The Battery Model is CR1220(Voltage 3V, Buy it yourself)

QSPI FLASH 256Mbit, Used for Storage of System Files and User Data

LED 4 User LEDs, 2 Power LEDs, Cofiguration LED

key 4 User Keys, 1 Power Switch, 1 Reset Key

Crystal Oscillator 33.333Mhz, Provide Stable Clock Source for the PS System 50MHz, Provide Extra Clock for PL Logic

SD Card Slot Insert Micro SD TF Card, Store Operating System Image and File System

MIPI Interface Used for connect with MIPI Camera Module [available only for AX7Z020]

Expansion Port Two 40-Pin Expansion Ports ( 0.1 inch Pitch ), Expand the 68 IOs Connect with 7 inch LCD Screen, Camera, AD / DA and Other Modules.

EEPROM EEPROM 24LC04 with IIC Interface

Temperature Sensor Temperature Sensor chip LM75, used to detect the temperature of the environment around the board

Power Supply Parameters

Voltage Input +5V DC

Current Input Max. Current 2A

Rating Lable 5V / 2A

DATA SHEET
