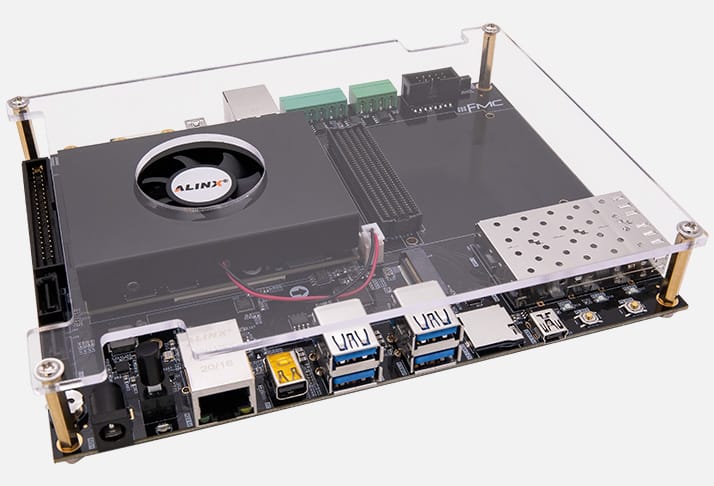

Product Description

The AXU9EGB/15EGB development board equipped with the AMD/Xilinx Zynq™ UltraScale+™ MPSoC-series device, delivers standout performance with fast DDR4 SDRAM, eMMC Flash, QSPI Flash, FMC HPC, DP, M.2.

Compatible with a multitude of FMC board (data acquisition, motor control, display camera interfaces, software defined radio), Provide high-speed communication (SFP+), high-speed storage (M.2) and video applications (DP).

Key Features

• System-on-Module

  ● AMD/Xilinx Zynq™ Ultrascale+™ MPSoC:
  ◆ ARM® quad-core Cortex™-A53 up to 1.3 GHz
  ◆ ARM® dual-core Cortex™-R5 up to 533 MHz
  ◆ Mali-400MP2 GPU
  ◆ 16nm FinFET+ FPGA fabric
  ● Pluggable module with 4 x Panasonic board-to-board connectors
  ● 4 GByte (64-bit) DDR4 SDRAM on PS
  ● 2 GByte (32-bit) DDR4 SDRAM on PL
  ● 64 MB QSPI Flash
  ● 8 GB eMMC Flash

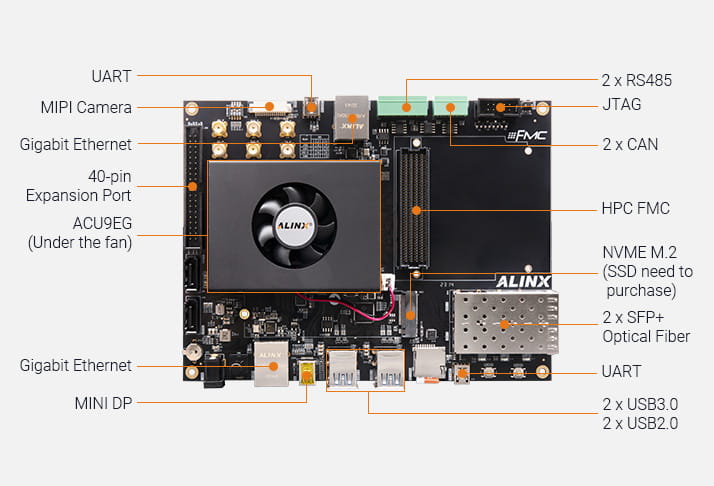

• Base Board

  ● 1 x FMC HPC Connectors (36 pairs lvds ios + 8 pairs GTH)
  ● 2 x SFP+ Slots (per line 12.5Gbps)
  ● 2 x Gigabit Ethernet (1 x PS + 1 x PL)
  ● 2 x UART (1 x PS + 1 x PL)(USB to UART)
  ● 1 x M.2 Interface on PS
  ● 1 x DP Interface on PS
  ● 1 x 2 lane MIPI on PL
  ● 2 x CAN on PS
  ● 2 x RS485 Interfaces (1 x PS + 1 x PL)
  ● 2 x USB3.0 on PS + 2 x USB2.0 on PS
  ● 1x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
  ● EEPROM: 4-Kbit I2C Serial EEPROM + 1 x Temperature sensor (LM75)
  ● 1 x Micro SD
  ● 1 x RTC (Real-time clock)
  ● LED (1 x pwr + 1 x done + 1 x PL) + KEY (1 x RST + 1 x PS + 1 x PL)
  ● 12V single supply
  ● Dimensions: 180 x 135 mm form factor
