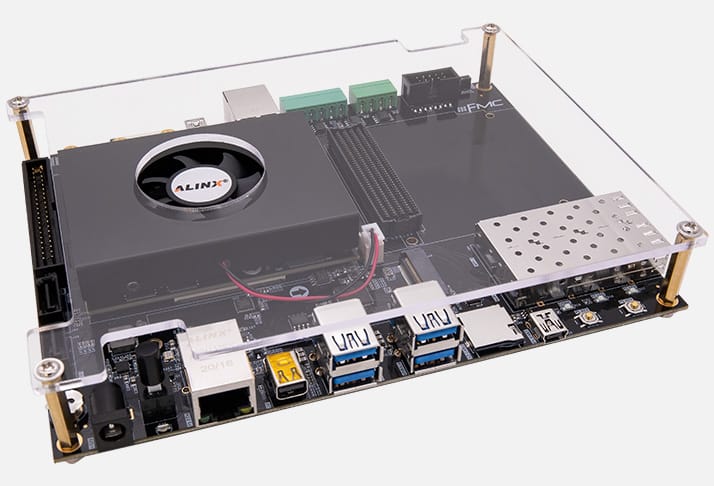

66b5f9233e2b0e002b1dffc6 AXU15EGB Dev Board & Kit with AMD Zynq™ US+ MPSoC ZU15EG https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/66b5f75fdbdb9100246ee9bf/1.jpg

Product Description

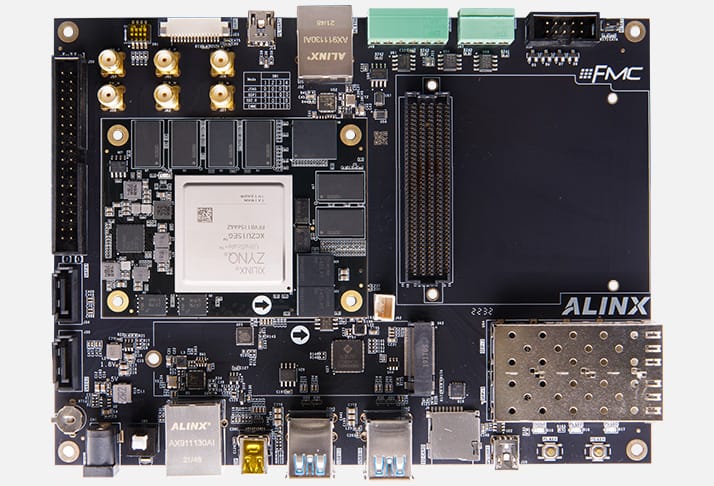

The AXU9EGB/15EGB development board equipped with the AMD/Xilinx Zynq™ UltraScale+™ MPSoC-series device, delivers standout performance with fast DDR4 SDRAM, eMMC Flash, QSPI Flash, FMC HPC, DP, M.2.

Compatible with a multitude of FMC board (data acquisition, motor control, display camera interfaces, software defined radio), Provide high-speed communication (SFP+), high-speed storage (M.2) and video applications (DP).

Key Features

System-on-Module

● AMD/Xilinx Zynq™ Ultrascale+™ MPSoC:
◆ ARM® quad-core Cortex™-A53 up to 1.3 GHz
◆ ARM® dual-core Cortex™-R5 up to 533 MHz
◆ Mali-400MP2 GPU
◆ 16nm FinFET+ FPGA fabric
● Pluggable module with 4 x Panasonic board-to-board connectors
● 4 GByte (64-bit) DDR4 SDRAM on PS
● 2 GByte (32-bit) DDR4 SDRAM on PL
● 64 MB QSPI Flash
● 8 GB eMMC Flash

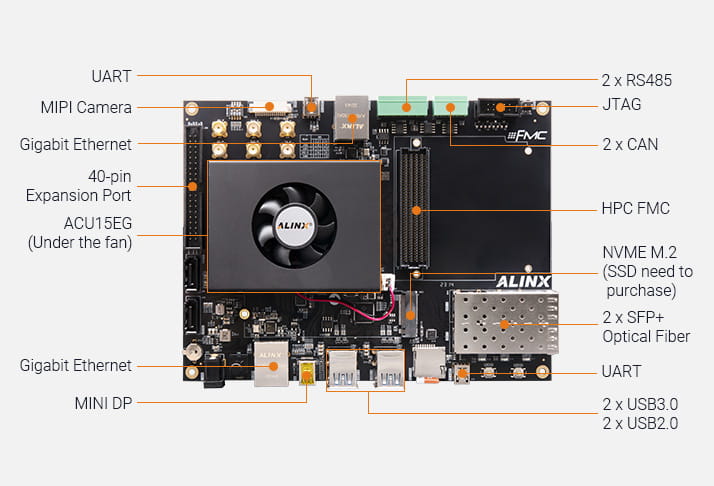

Base Board

● 1 x FMC HPC Connectors (36 pairs lvds ios + 8 pairs GTH)
● 2 x SFP+ Slots (per line 12.5Gbps)
● 2 x Gigabit Ethernet (1 x PS + 1 x PL)
● 2 x UART (1 x PS + 1 x PL)(USB to UART)
● 1 x M.2 Interface on PS
● 1 x DP Interface on PS
● 1 x 2 lane MIPI on PL
● 2 x CAN on PS
● 2 x RS485 Interfaces (1 x PS + 1 x PL)
● 2 x USB3.0 on PS + 2 x USB2.0 on PS
● 1x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
● EEPROM: 4-Kbit I2C Serial EEPROM + 1 x Temperature sensor (LM75)
● 1 x Micro SD
● 1 x RTC (Real-time clock)
● LED (1 x pwr + 1 x done + 1 x PL) + KEY (1 x RST + 1 x PS + 1 x PL)
● 12V single supply
● Dimensions: 180 x 135 mm form factor

DATA SHEET

 TT-XIL-AXU15EGB
in stock INR
Xilinx Inc.
1 1
AXU15EGB Dev Board & Kit with AMD Zynq™ US+ MPSoC ZU15EG

AXU15EGB Dev Board & Kit with AMD Zynq™ US+ MPSoC ZU15EG

Sku: TT-XIL-AXU15EGB
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 12-14 Working days

Description of product

Product Description

The AXU9EGB/15EGB development board equipped with the AMD/Xilinx Zynq™ UltraScale+™ MPSoC-series device, delivers standout performance with fast DDR4 SDRAM, eMMC Flash, QSPI Flash, FMC HPC, DP, M.2.

Compatible with a multitude of FMC board (data acquisition, motor control, display camera interfaces, software defined radio), Provide high-speed communication (SFP+), high-speed storage (M.2) and video applications (DP).

Key Features

System-on-Module

● AMD/Xilinx Zynq™ Ultrascale+™ MPSoC:
◆ ARM® quad-core Cortex™-A53 up to 1.3 GHz
◆ ARM® dual-core Cortex™-R5 up to 533 MHz
◆ Mali-400MP2 GPU
◆ 16nm FinFET+ FPGA fabric
● Pluggable module with 4 x Panasonic board-to-board connectors
● 4 GByte (64-bit) DDR4 SDRAM on PS
● 2 GByte (32-bit) DDR4 SDRAM on PL
● 64 MB QSPI Flash
● 8 GB eMMC Flash

Base Board

● 1 x FMC HPC Connectors (36 pairs lvds ios + 8 pairs GTH)
● 2 x SFP+ Slots (per line 12.5Gbps)
● 2 x Gigabit Ethernet (1 x PS + 1 x PL)
● 2 x UART (1 x PS + 1 x PL)(USB to UART)
● 1 x M.2 Interface on PS
● 1 x DP Interface on PS
● 1 x 2 lane MIPI on PL
● 2 x CAN on PS
● 2 x RS485 Interfaces (1 x PS + 1 x PL)
● 2 x USB3.0 on PS + 2 x USB2.0 on PS
● 1x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
● EEPROM: 4-Kbit I2C Serial EEPROM + 1 x Temperature sensor (LM75)
● 1 x Micro SD
● 1 x RTC (Real-time clock)
● LED (1 x pwr + 1 x done + 1 x PL) + KEY (1 x RST + 1 x PS + 1 x PL)
● 12V single supply
● Dimensions: 180 x 135 mm form factor
