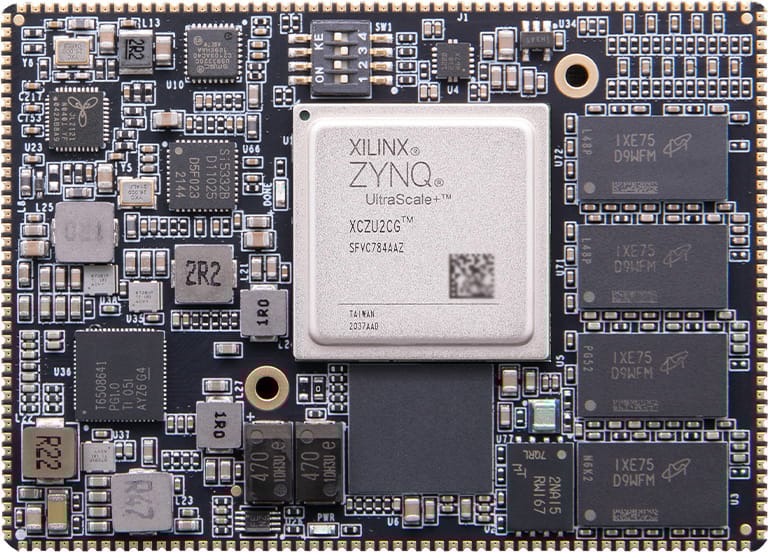

Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core Board XCZU2CG
- Lead time is 3-4 weeks
Description of product
2x ARM Cortex-A53 , 2× ARM Cortex™-R5
Main Parameters
Core board-M2CG
FPGA Chip-XCZU2CG-1SFVC784E
Speed Grades- -1
Working Temperature-Industrial Grade , 0°C~70°C
CPU kernel-2× ARM CORTEX-A53 + 2× ARM CORTEX-R5
CPU frequency-1.2GHz | 500MHz
GPU Graphic processing sheet-PCIe Gen2 x1, 1x USB3.0, Sata 3.1 , DisplayPort, 1x Tri-mode Gigabit Ethernet
Common connection interface-1x SD2.0, 1x JTAG
PS DDR4-4GB, 64bit
QSPI | EMMC Flash-32MB | 8GB
Logic Cells-103K
Flip-Flops-94K
LUTs-47K
Max. Distributed RAM-1.2Mb
Total Block RAM-5.3Mb
Clock Management Tiles (CMTs)-3
DSP Slices-240
PS MI/Os-15
PL I/Os-102
PL HP I/Os-96 个
PL HD I/Os-6
Connection mode-Stamp hole
Functions and interfaces

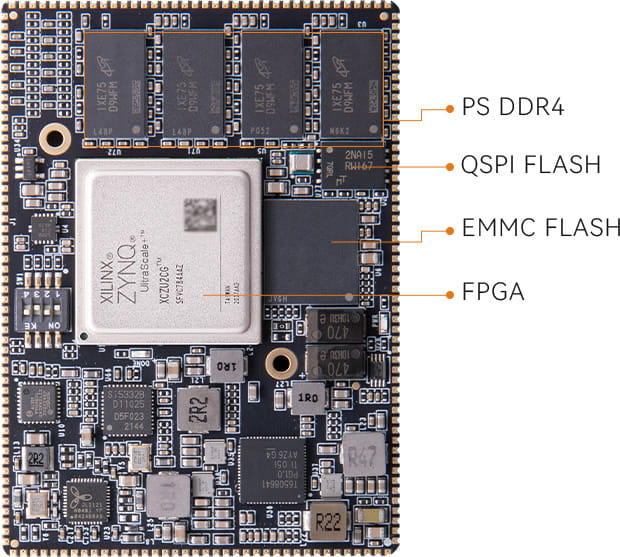

RAM-4GB DDR4, 64bit
QSPI Flash-One piece of 256Mbit QSPI flash, which can be used as FPGA user data storage
EMMC Flash-8GB, used in zynq system, can be used as a large capacity storage device of the system
Crystal oscillator-One passive crystal oscillator is provided to PS system
Power Supply Parameters
Voltage Input-+12V DC
Package List
FPGA SoM Board-1

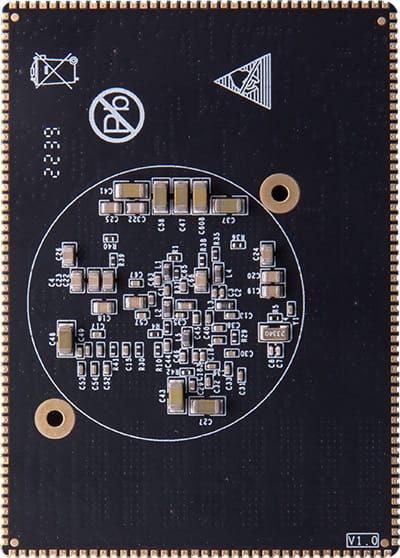

Structure Size
Size Dimension-70mm x 50mm
Number of Layers-16-Layer PCB
