65f7e91b88d51553836333a4 Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core Board XCZU4EV https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/65f7e8ad4d3034537c7ebac4/1.jpg

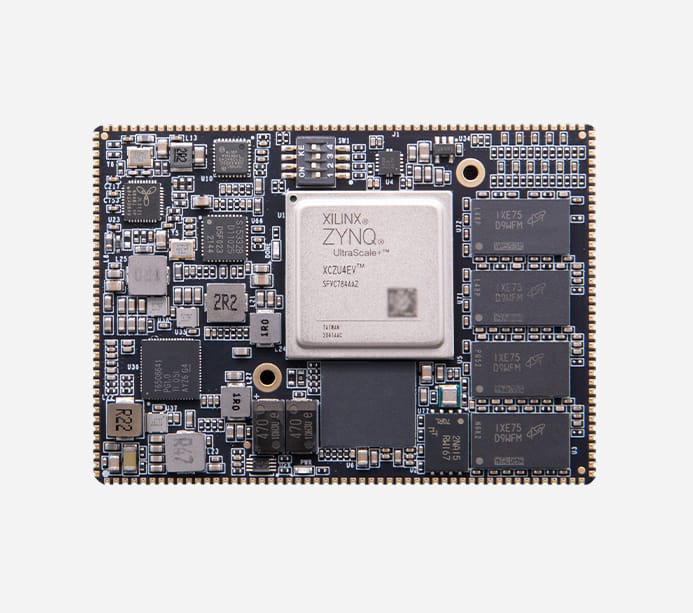

4 x ARM Cortex-A53, 2 x Cortex-R5 processor

Mali-400 MP2 GPU, 16nm FinFET+ Programmable Logic Integrated H.264 / H.265 video codec, codec up to 4K x 2K (60fps) videc Apply to Multimedia, Automotive ADAS, Surveillance, AI Intelligence Cloud Computing, High-speed Data Exchange and Storage and other Embedded Vision

Main Parameters

Core board-M4EV

FPGA Chip-XCZU4EV-1SFVC784I

Speed Grades- -1

Working Temperature-Industrial Grade, -40°C~85°C

CPU kernel-4x Cortex™-A53; 2x Cortex™-R5

CPU frequency-1.2GHz; 500MHz

GPU Graphic processing sheet-Mali™-400 MP2

High speed connection interface-PCIe Gen2 x1, 1x USB3.0, Sata 3.1, DisplayPort , 1x Tri-mode Gigabit Ethernet

Common connection interface-1x SD2.0, 1x JTAG

PS DDR4-4GB, 64bit

QSPI | EMMC Flash-32MB | 8GB

Logic Cells-192K

Flip-Flops-176K

LUTs-88K

Max. Distributed RAM-2.6Mb

Total Block RAM | UltraRAM-4.5Mb | 13.5Mb

Clock Management Tiles (CMTs)-4

DSP Slices-728

Video Codec Unit-H.264 / H.265

PS MI/Os-15

PL I/Os-102

PL HPI/Os-96

PL HD I/Os-6

Connection mode-Stamp hole

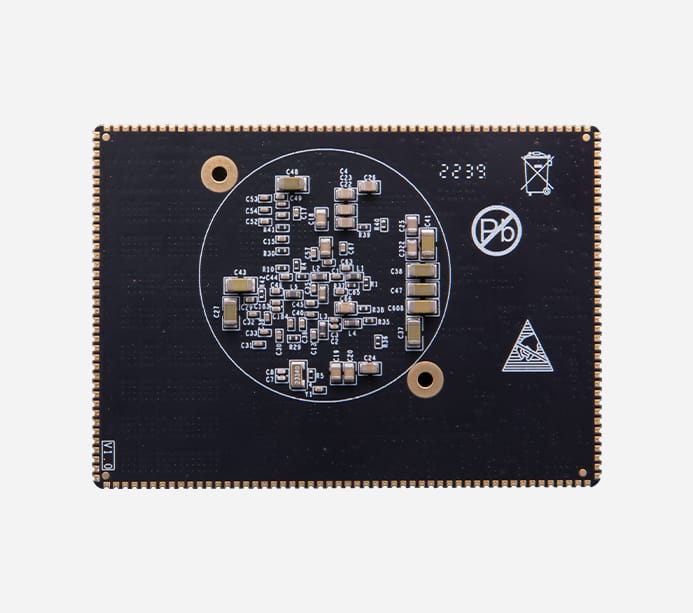

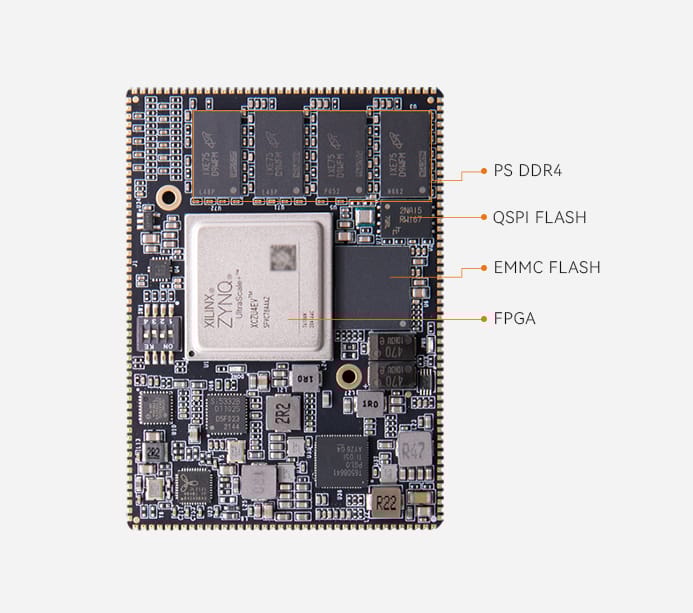

Functions and interfaces

RAM-4GB DDR4, 64bit

QSPI Flash-One piece of 256Mbit QSPI flash, which can be used as FPGA user data storage

EMMC Flash-8GB, used in zynq system, can be used as a large capacity storage device of the system

Crystal oscillator-One passive crystal oscillator is provided to PS system

Power Supply Parameters

Voltage Input- +12V DC

Package List

FPGA SoM Board-1

Structure Size

Size Dimension-70mm x 50mm

Number of Layers-16-Layer PCB

TT-XIL-M4EV
in stockINR
Xilinx
1 1
Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core Board XCZU4EV

Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core Board XCZU4EV

Sku: TT-XIL-M4EV

Product Enquiry

Sold By: tenettech
Features
  • Lead time is 3-4 weeks

Description of product

4 x ARM Cortex-A53, 2 x Cortex-R5 processor

Mali-400 MP2 GPU, 16nm FinFET+ Programmable Logic Integrated H.264 / H.265 video codec, codec up to 4K x 2K (60fps) videc Apply to Multimedia, Automotive ADAS, Surveillance, AI Intelligence Cloud Computing, High-speed Data Exchange and Storage and other Embedded Vision

Main Parameters

Core board-M4EV

FPGA Chip-XCZU4EV-1SFVC784I

Speed Grades- -1

Working Temperature-Industrial Grade, -40°C~85°C

CPU kernel-4x Cortex™-A53; 2x Cortex™-R5

CPU frequency-1.2GHz; 500MHz

GPU Graphic processing sheet-Mali™-400 MP2

High speed connection interface-PCIe Gen2 x1, 1x USB3.0, Sata 3.1, DisplayPort , 1x Tri-mode Gigabit Ethernet

Common connection interface-1x SD2.0, 1x JTAG

PS DDR4-4GB, 64bit

QSPI | EMMC Flash-32MB | 8GB

Logic Cells-192K

Flip-Flops-176K

LUTs-88K

Max. Distributed RAM-2.6Mb

Total Block RAM | UltraRAM-4.5Mb | 13.5Mb

Clock Management Tiles (CMTs)-4

DSP Slices-728

Video Codec Unit-H.264 / H.265

PS MI/Os-15

PL I/Os-102

PL HPI/Os-96

PL HD I/Os-6

Connection mode-Stamp hole

Functions and interfaces

RAM-4GB DDR4, 64bit

QSPI Flash-One piece of 256Mbit QSPI flash, which can be used as FPGA user data storage

EMMC Flash-8GB, used in zynq system, can be used as a large capacity storage device of the system

Crystal oscillator-One passive crystal oscillator is provided to PS system

Power Supply Parameters

Voltage Input- +12V DC

Package List

FPGA SoM Board-1

Structure Size

Size Dimension-70mm x 50mm

Number of Layers-16-Layer PCB
