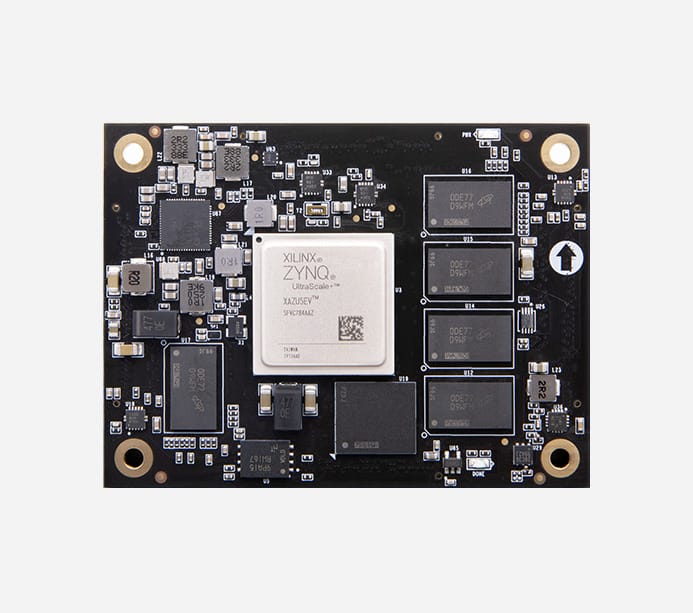

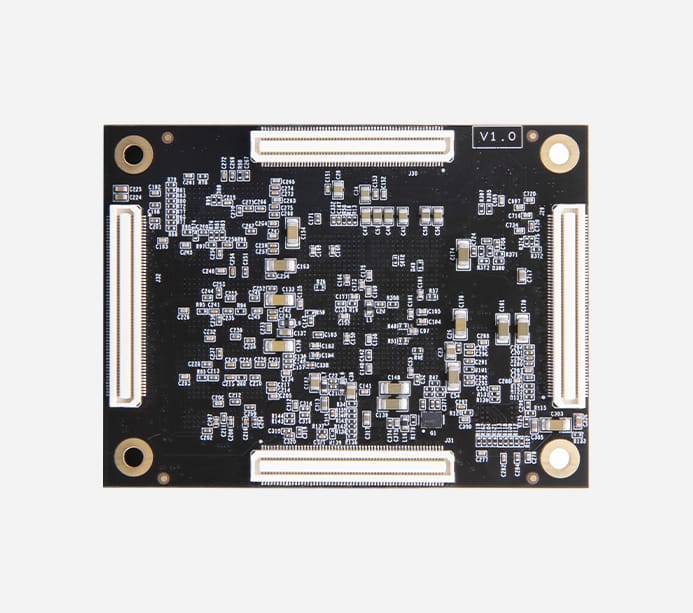

6578467a1eccc89433c20e89 Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core Board AI XCZU5EV XCZU5EV https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/657844cd0594f8179c0315a2/1.jpg

Product Performance

Main Parameters

Core board ACU5EV

FPGA Chip XCZU5EV-2SFVC784I

Processor Core 4x Cortex™-A53, 1.333GHz; Dual Core  Cortex™-R5, 533MHz

Processor CoreMali™-400 MP2

RAM PS DDR4 4GB, 64bit, 2400Mbps PL DDR4 1GB, 16bit, 2133Mbps

PS-end High Speed Connection PCIe Gen2 x4, 2x USB3.0, SATA 3.1, DisplayPort, 4x Tri-mode Gigabit Ethernet

PS-end General Connection 2x USB 2.0, 2x SD/SDIO, 2x UART, 2x CAN 2.0B, 2x I2C, 2x SPI, 4x 32b GPIO

PL PCIe Gen3 PCIe Gen3 x4

PL GTH Transceiver 12.5Gb/s x4

Chip Level Industrial Grade

Temperature -40°c~85°c

Speed Grades -2

Logic Cells 256K

Look Up Tables (LUTs) 117K

DSP Slices 1248 ( 18x 25MACCs )

CLB Flip-Flops 234K

Block RAM 5.1Mb

EMMC FLASH 8GB

QSPI FLASH 256Mbit

HP I/O 96

HD I/O 84

Interface and Function

VCU Video Codec Unit ( VCU ), Integrated H.264 / H.265 video codec

QSPI Flash 256 Mbit, Used as FPGA User Data Storage

EMMC Flash 8GB, Used as Large-Capacity Storage System

40-120 Pin Expansion Ports Panasonic Industrial Grade High-Speed Inter-Board Connectors

Ｃrystal Oscillator 33.333MHz Provide for the PS system
200MHz Provide DDR Reference Clock for the PL Logic

Power Supply Parameters

Voltage Input +5V DC

DATA SHEET





 TT-XIL-ACU5EV
in stock INR
Xilinx
1 1
Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core Board AI XCZU5EV XCZU5EV

Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core Board AI XCZU5EV XCZU5EV

Sku: TT-XIL-ACU5EV
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Call for Pricing

Description of product

Product Performance

Main Parameters

Core board ACU5EV

FPGA Chip XCZU5EV-2SFVC784I

Processor Core 4x Cortex™-A53, 1.333GHz; Dual Core  Cortex™-R5, 533MHz

Processor CoreMali™-400 MP2

RAM PS DDR4 4GB, 64bit, 2400Mbps PL DDR4 1GB, 16bit, 2133Mbps

PS-end High Speed Connection PCIe Gen2 x4, 2x USB3.0, SATA 3.1, DisplayPort, 4x Tri-mode Gigabit Ethernet

PS-end General Connection 2x USB 2.0, 2x SD/SDIO, 2x UART, 2x CAN 2.0B, 2x I2C, 2x SPI, 4x 32b GPIO

PL PCIe Gen3 PCIe Gen3 x4

PL GTH Transceiver 12.5Gb/s x4

Chip Level Industrial Grade

Temperature -40°c~85°c

Speed Grades -2

Logic Cells 256K

Look Up Tables (LUTs) 117K

DSP Slices 1248 ( 18x 25MACCs )

CLB Flip-Flops 234K

Block RAM 5.1Mb

EMMC FLASH 8GB

QSPI FLASH 256Mbit

HP I/O 96

HD I/O 84

Interface and Function

VCU Video Codec Unit ( VCU ), Integrated H.264 / H.265 video codec

QSPI Flash 256 Mbit, Used as FPGA User Data Storage

EMMC Flash 8GB, Used as Large-Capacity Storage System

40-120 Pin Expansion Ports Panasonic Industrial Grade High-Speed Inter-Board Connectors

Ｃrystal Oscillator 33.333MHz Provide for the PS system
200MHz Provide DDR Reference Clock for the PL Logic

Power Supply Parameters

Voltage Input +5V DC

DATA SHEET
