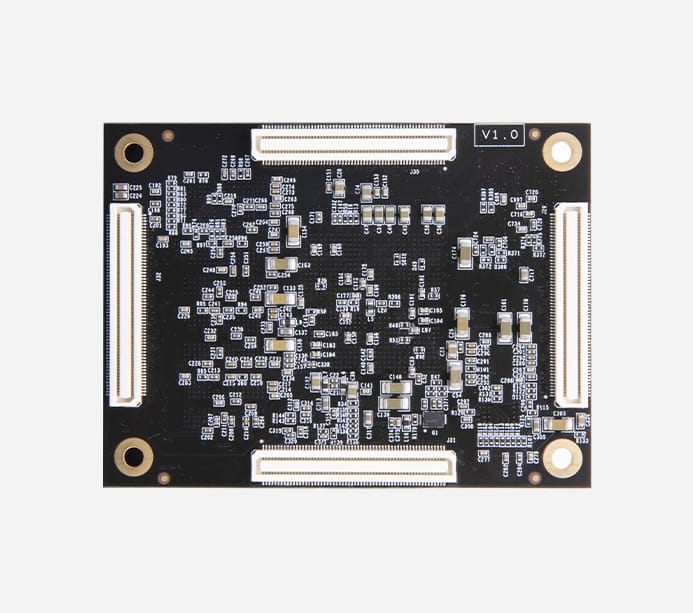

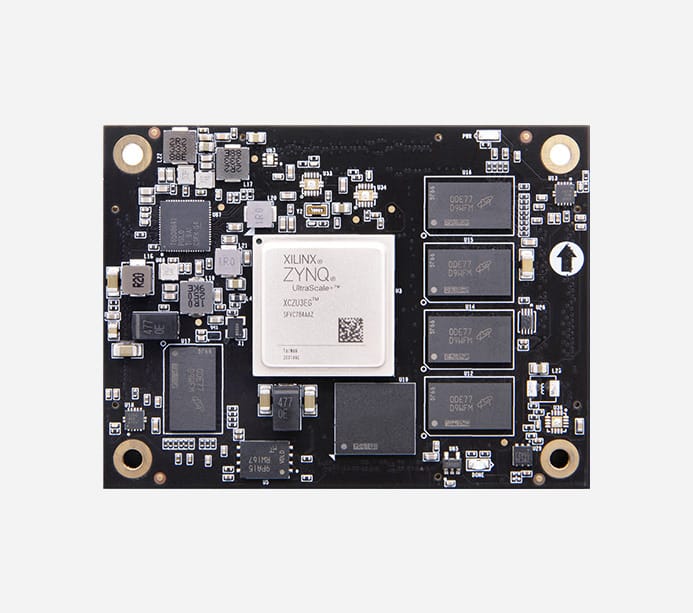

Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core Board AI XCZU3EG XCZU3EG
SIZE GUIDE
Your enquiry has been sent
Product Enquiry Form
Leave us a message for futher information.
- Call for Pricing
Description of product
Product Performance
Main Parameters
Core Board Chip ACU3EG
FPGA Chip XCZU3EG-1SFVC784I
Processor Core 4x ARM Cortex™-A53, 1.2GHz; 2x Cortex™-R5, 500MHz
GPU Mali™-400 MP2
RAM PS DDR4 4GB, 64bit, 2400Mbps PL DDR4 1GB, 16bit, 2400Mbps
QSPI FLASH 256Mbit
EMMC FLASH 8GB
Speed Grades -1
Chip Level Industrial Grade
Working Temperature -40°c~85°
Logic Cells 154K
CLB Flip-Flops 141K
Look Up Tables (LUTs) 71K
DSP slice 360
Block RAM 7.6Mb
HP I/O 96
HD I/O 84
Interface and Function
QSPI Flash 56Mbit QSPI FLASH, Used as FPGA User Data Storage
EMMC Flash 8GB, Used as Large-Capacity Storage System
40-120 Pin Expansion Ports Panasonic Industrial Grade High-Speed Inter-Board Connectors
Ｃrystal Oscillator 33.333MHz Provide for the PS system 200MHz Provide DDR Reference Clock for the PL Logic
Power Supply Parameters
Voltage Input +5V DC
