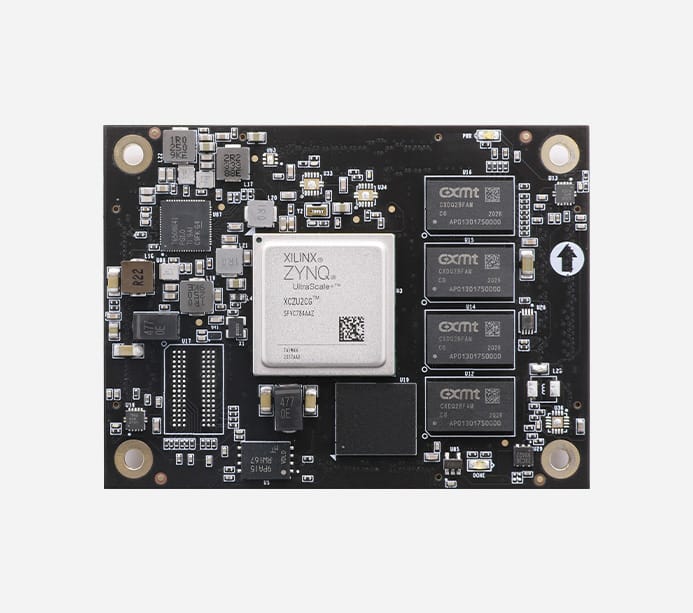

65784c81e2e57d18282063e7 Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core Board AI XCZU2CG XCZU2CG https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/65784b480594f8179c03a362/f13.jpg

Product Performance

Main Parameters

Core Board Chip ACU2CG

FPGA Chip XCZU2CG-1SFVC784E

Processor Core 2x ARM Cortex™-A53, 1.2GHz; 2x Cortex™-R5, 500MHz

GPU   -

RAM PS  DDR4 2GB, 64bit, 2400Mbps

QSPI FLASH 256Mbit

EMMC FLASH 8GB

Speed Grades -1

Chip Level Commercial Grade

Working Temperature -0°c~70°c

Logic Cells 103K

CLB Flip-Flops 94K

Look Up Tables (LUTs) 47K

DSP slice 240 ( 18x25MACCs )

Block RAM 5.3Mb

HP I/O 96

HD I/O 84

Interface and Function



QSPI Flash 56Mbit QSPI FLASH, Used as FPGA User Data Storage

EMMC Flash 8GB, Used as Large-Capacity Storage System

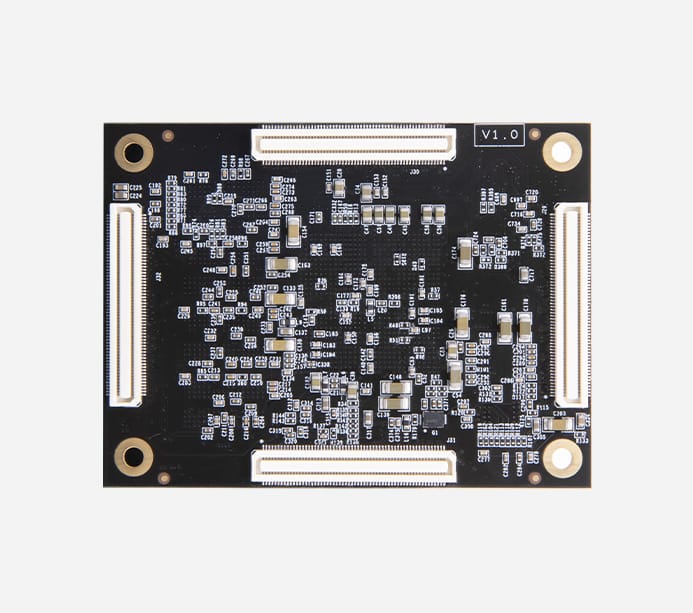

40-120 Pin Expansion Ports Panasonic Industrial Grade High-Speed Inter-Board Connectors

Ｃrystal Oscillator 33.333MHz Provide for the PS system 200MHz Provide DDR Reference Clock for the PL Logic

Power Supply Parameters

Voltage Input +5V DC

 DATA SHEET















 TT-XIL-ACU2CG
in stock INR
Xilinx
1 1
Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core Board AI XCZU2CG XCZU2CG

Xilinx Zynq UltraScale+ MPSoC SOM FPGA Core Board AI XCZU2CG XCZU2CG

Sku: TT-XIL-ACU2CG
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Call for Pricing

Description of product

Product Performance

Main Parameters

Core Board Chip ACU2CG

FPGA Chip XCZU2CG-1SFVC784E

Processor Core 2x ARM Cortex™-A53, 1.2GHz; 2x Cortex™-R5, 500MHz

GPU   -

RAM PS  DDR4 2GB, 64bit, 2400Mbps

QSPI FLASH 256Mbit

EMMC FLASH 8GB

Speed Grades -1

Chip Level Commercial Grade

Working Temperature -0°c~70°c

Logic Cells 103K

CLB Flip-Flops 94K

Look Up Tables (LUTs) 47K

DSP slice 240 ( 18x25MACCs )

Block RAM 5.3Mb

HP I/O 96

HD I/O 84

Interface and Function



QSPI Flash 56Mbit QSPI FLASH, Used as FPGA User Data Storage

EMMC Flash 8GB, Used as Large-Capacity Storage System

40-120 Pin Expansion Ports Panasonic Industrial Grade High-Speed Inter-Board Connectors

Ｃrystal Oscillator 33.333MHz Provide for the PS system 200MHz Provide DDR Reference Clock for the PL Logic

Power Supply Parameters

Voltage Input +5V DC

 DATA SHEET
