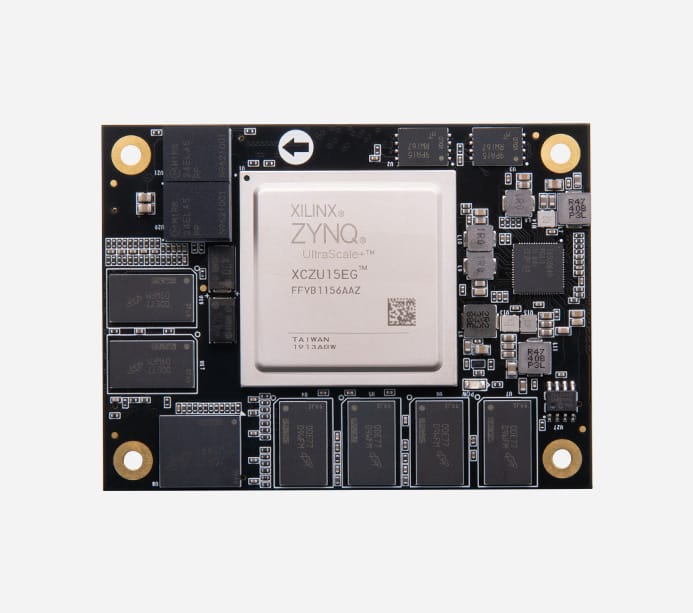

Core board ACU15EG
FPGA Chip XCZU15EG-2FFVB1156I
Chip CPU 4x ARM Cortex-A53, 1.333GHz; Dual Core Cortex™-R5, 533MHz
Chip GPU Mali™-400 MP2
RAM PS DDR4 4GB, 64bit, 2400Mbps PL DDR4 2GB, 32bit, 2400Mbps
PS-end High Speed Connection PCIe Gen2 x4, 2x USB3.0, SATA 3.1, DisplayPort, 4x Tri-mode Gigabit Ether net
PS-end General Connection 2x USB 2.0, 2x SD/SDIO, 2x UART, 2x CAN 2.0B, 2x I2C, 2x SPI, 4x 32b GPIO
PL-end GTH 12.5Gb/s x 16
Chip Level Industrial Grade
Working Temperature -40°c~85°c
Speed Grades -2
Logic Cells 747K
CLB Flip-Flops 682K
Look Up Tables (LUTs) 341K
Global Clock 4
DSP Slices 3,528
MAX.DISTRIBU-TED RAM 11.3Mb
BLOCK RAM 26.2Mb
ULTRARAM 31.5Mb
EMMC FLASH 8GB
QSPI FLASH 64MB
HP I/O 96
HD I/O 66
QSPI Flash 2 Pieces of 256 Mbit QSPI Flash, Used as FPGA User Data Storage
EMMC Flash 8GB, Used as Large-Capacity Storage System
40-120 Pin Expansion Ports Panasonic Industrial Grade High-Speed Inter-Board Connectors
Crystal Oscillator 33.333MHz Provide for the PS system200MHz Provide DDR Reference Clock for the PL Logic
Voltage Input Board to Board Connector, + 12V DC
TT-XIL-6971390278833
Core board ACU15EG
FPGA Chip XCZU15EG-2FFVB1156I
Chip CPU 4x ARM Cortex-A53, 1.333GHz; Dual Core Cortex™-R5, 533MHz
Chip GPU Mali™-400 MP2
RAM PS DDR4 4GB, 64bit, 2400Mbps PL DDR4 2GB, 32bit, 2400Mbps
PS-end High Speed Connection PCIe Gen2 x4, 2x USB3.0, SATA 3.1, DisplayPort, 4x Tri-mode Gigabit Ether net
PS-end General Connection 2x USB 2.0, 2x SD/SDIO, 2x UART, 2x CAN 2.0B, 2x I2C, 2x SPI, 4x 32b GPIO
PL-end GTH 12.5Gb/s x 16
Chip Level Industrial Grade
Working Temperature -40°c~85°c
Speed Grades -2
Logic Cells 747K
CLB Flip-Flops 682K
Look Up Tables (LUTs) 341K
Global Clock 4
DSP Slices 3,528
MAX.DISTRIBU-TED RAM 11.3Mb
BLOCK RAM 26.2Mb
ULTRARAM 31.5Mb
EMMC FLASH 8GB
QSPI FLASH 64MB
HP I/O 96
HD I/O 66
QSPI Flash 2 Pieces of 256 Mbit QSPI Flash, Used as FPGA User Data Storage
EMMC Flash 8GB, Used as Large-Capacity Storage System
40-120 Pin Expansion Ports Panasonic Industrial Grade High-Speed Inter-Board Connectors
Crystal Oscillator 33.333MHz Provide for the PS system200MHz Provide DDR Reference Clock for the PL Logic
Voltage Input Board to Board Connector, + 12V DC
