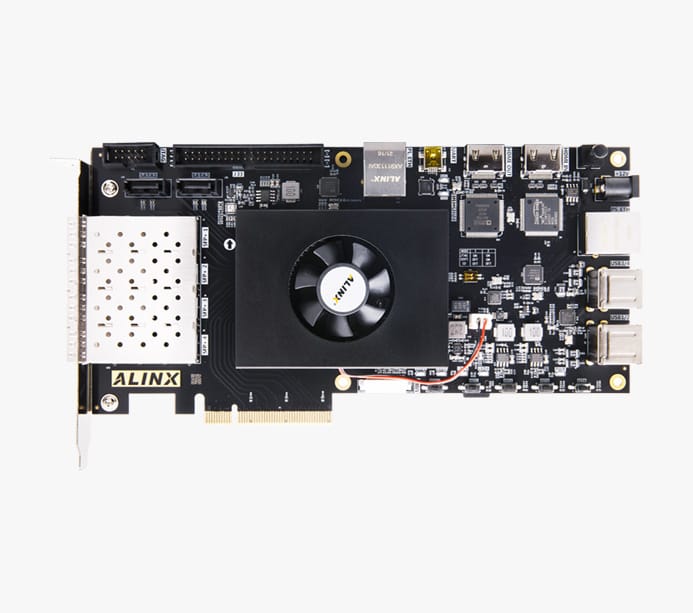

65701157af74f548c4aac03c XILINX Zynq-7000 SoC PCIE ARM FPGA Development Board XC7Z035 https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/65700f8ba811ebc4b94139e6/ax7z035-1-1-.jpg

PCIe 2.0, SFP x4, Gigabit x2, 8GB eMMC, 2GB DDR3, HDMI Input / Output, GTX

Product Parameters

Core Board Praramete

FPGA Board

AX7Z035 / AX7Z035B

FPGA Chip

XC7Z035-2FFG676I

Kernel

Dual-Core ARM Cortex-A9 Main Frequency 800MHz

PL-end RAM

1GB DDR3, Data Rate 1600Mbps

PS-end RAM

1GB DDR3, Data Rate 1066Mbps

Speed Grades

-2

Chip Level

Industrial Grade

Working Temperature

-40°C~85°C

Logic Cells

275k

Look Up Tables (LUTs)

171900

CLB Flip-Flops

343800

Multiplier

900

Transceivers

8-Channels, Support PCIE Gen2 x8

Block RAM

17.6Mbit

MIO

37

PL IO

144

Voltage Adjustable IO

96

LVDS

48 Pairs

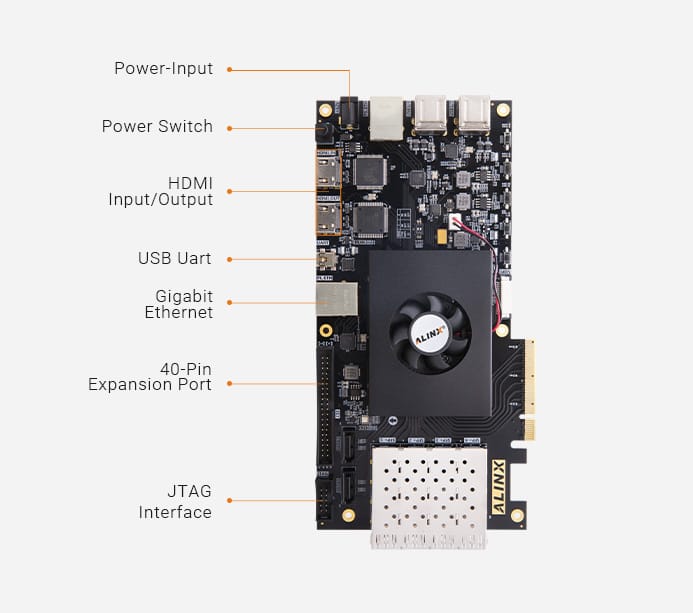

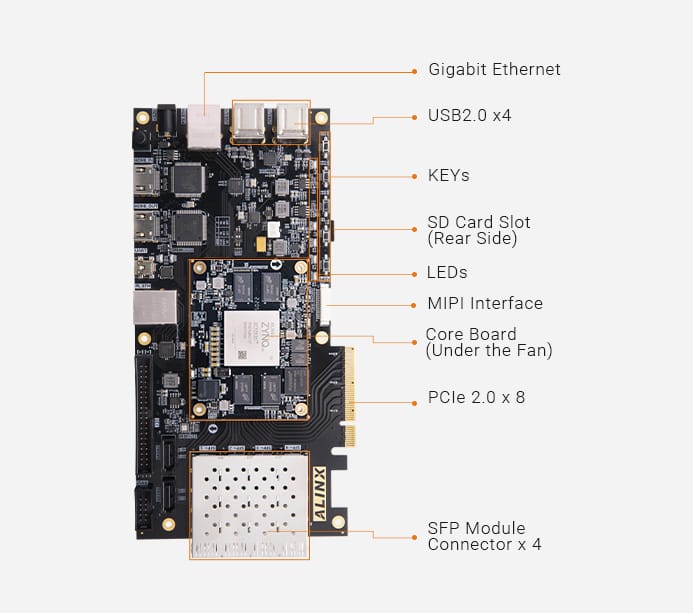

Interface and Function

DDR3

32bit Bus, Data Rate 1066Mbps

QSPI Flash

512Mbit QSPI FLASH, Used as FPGA User Data Storage

EMMC Flash

8GB, Used as a Large-Capacity Storage Device in the ZYNQ System

Transceivers

8GTX, Each up to 6.25Gb/s, Used for SFP and PCIe Data Communication

SFP Interface

4-way High-Speed SFP Interface, the Receiving and Transmitting Speed of each Channel is up to 10.3125Gb/s

PCIe 2.0

PCIe x8, Data Transmission Interface Single Channel Communication Rate up to 5GBaud

Ethernet Interface

Two 10 / 100M / 1000M Ethernet RJ-45 Interfaces for Data Exchange

JTAG

Standard JTAG Port for Debug and Download of FPGA Program

HDMI

HDMI Video Input and Output Interface, up to 1080P@60Hz Support 3D Output and Data Input in Different Formats

USB 2.0 x4

Used for Connect USB Peripherals such as Mouse, Keyboard.

USB Uart

Used for Serial Communication with PC or External Devices

Crystal Oscillator

33.333Mhz Provide Stable Clock Source for the PS System
200Mhz Provide DDR Reference Clock for the PL Logic
125Mhz Provide Reference Clock for the GTX Transceiver

Micro SD Card Slot

SD TF Card to Store Operating System Image and File System

LED

9 LEDs lights, 2 LEDs in the Core Board, 7 LEDs in the Carrier Board

KEYs

5 Keys and 1 Reset Key, 4 PL User Keys

40-Pin Expansion Ports

Two 40-Pin Expansion Ports ( 0.1 inch Pitch ), Can be Connect with Various ALINX Modules ( Binocular Camera Module, TFT LCD Screen, Camera, AD / DA and Other Modules )

Power Supply Parameters

Voltage Input

+12V DC

Current Input

Max. Current 3A

DATA SHEET

TT-XIL-AX7Z035/AX7Z035B
