65741f7526eb16868c37f8de XILINX Zynq-7000 SoC ARM FPGA Development Board XC7Z010 https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/65741eac08df0986f397f616/ax7021b-1.jpg

Main Parameters

FPGA Board AX7Z010

FPGA Chip XC7Z010-1CLG400I

Kernel Dual-Core ARM Cortex-A9

RAM DDR3 512MB, Data Rate 1066Mbps

Logic Cells 28k

Look Up Tables (LUTs) 17600

CLB Flip-Flops 35200

DSP Slices 80

Block RAM 2.1Mb

PS MIO 48

PL IO 96

Interface and Function

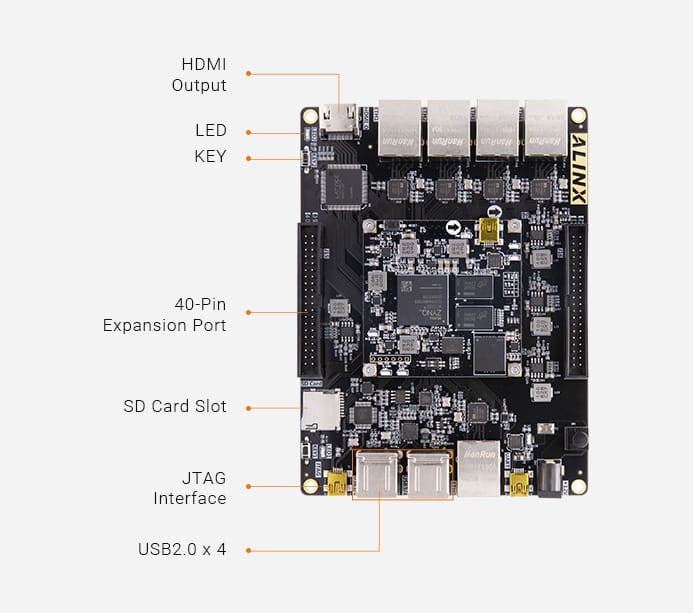

JTAG JTAG Interface to Debug and Download ZYNQ System

Ethernet Interface 10 / 100 / 1000M Adaptive Ethernet with RJ-45 Interface Used for Data Exchange with Computers and Other Network Equipment

HDMI HDMI Image and Video Input / Output Interface, Supports 1080@60Hz

USB HOST Used for Connect USB Peripherals such as Mouse, Keyboard and U-Disk

USB Uart Used for OTG Communication with PC or USB Device

CAN Bus 2 CAN Bus Interface, for User CAN Communication Service

RS485 2 RS485 Interfaces, 485 communication Services for Users

AD Interface 2 SMA Interfaces, Used for Analog Signal Input and Voltage Conversion

Real Time Clock RTC with a Battery Holder, The Battery Model is CR1220( Voltage 3V , Buy it yourself )

QSPI FLASH 256Mbit, Used for Storage of System Files and User Data

LED 4 User LEDs, 2 Power LEDs, Cofiguration LED

key 4 User Keys, 1 Power Switch, 1 Reset Key

Crystal Oscillator 33.333Mhz, Provide Stable Clock Source for the PS System 50MHz, Provide Extra Clock for PL Logic

SD Card Slot Insert Micro SD TF Card, Store Operating System Image and File System

MIPI Interface -

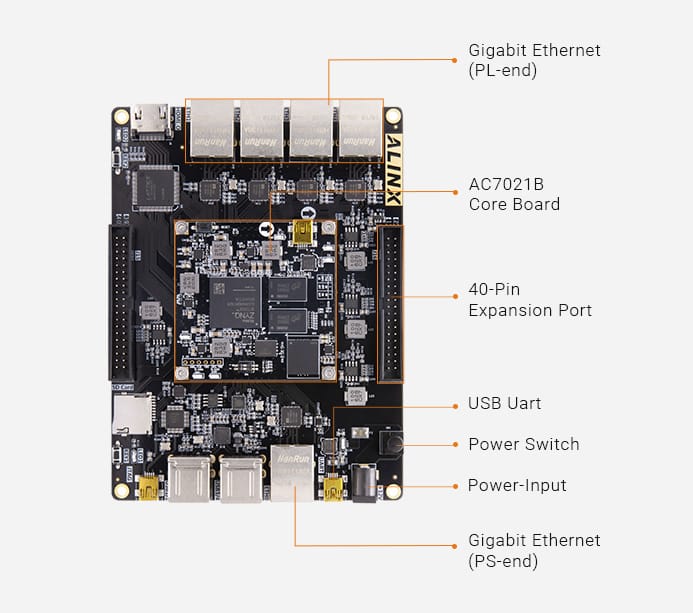

Expansion Port Two 40-Pin Expansion Ports ( 0.1 inch Pitch ), Expand the 68 IOs Connect with 7 inch LCD Screen, Camera, AD / DA and Other Modules

EEPROM EEPROM 24LC04 with IIC Interface

Temperature Sensor Temperature Sensor chip LM75, used to detect the temperature of the environment around the board

Power Supply Parameters

Voltage Input +5V DC

Current Input Max. Current 2A

Rating Lable 5V / 2A
