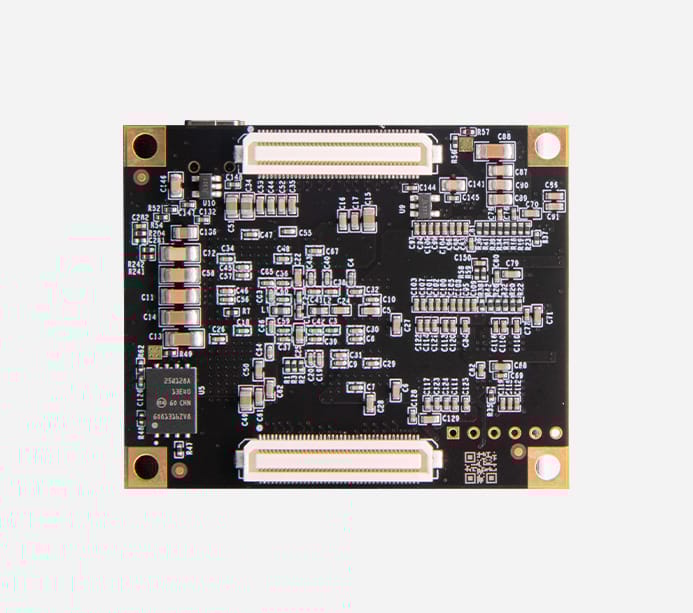

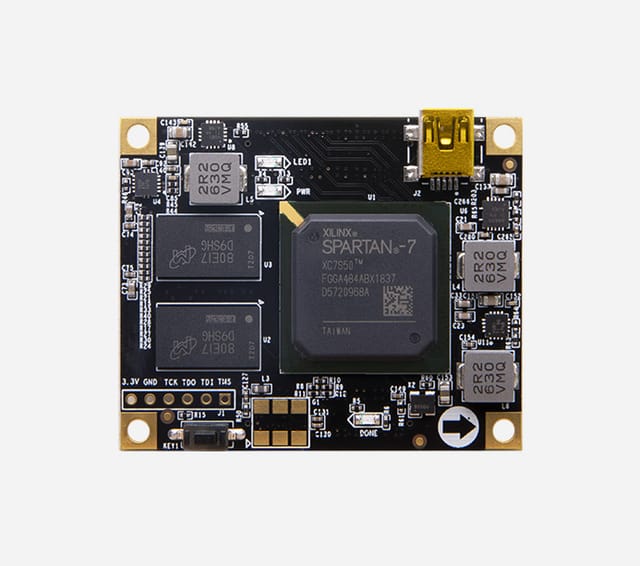

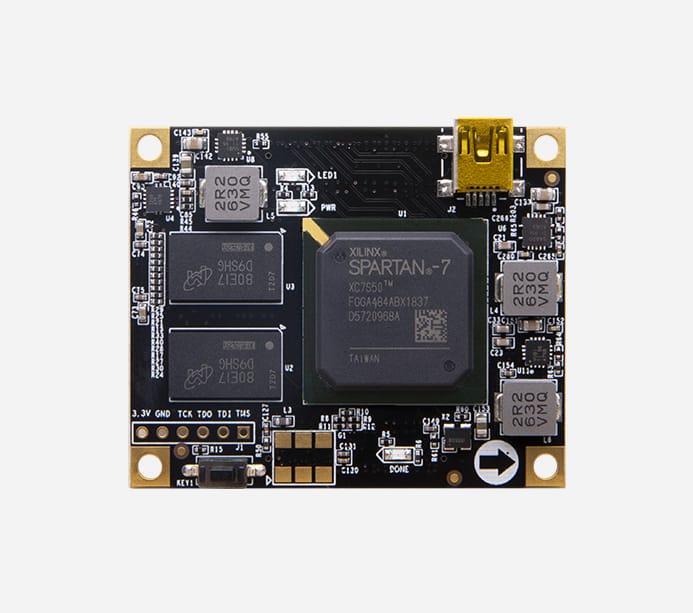

657ac4b44517b40e89321b5d ALINX Xilinx Spartan-7 SOM FPGA Core Board XC7S50 XC7S50 https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/657ac3eca066cfae5f641080/d1.jpg

PRODUCT PARAMETERS

FPGA Chip Parameters

Core Board Chip AC7050B

FPGA Chip XC7S50-1FGGA484I

Logic Cells 52160

DDR3 1GB, Data Frequency 333.3MHz

CLB Flip-Flops 65200

Logic Cells 52160

DSP 120

Look Up Tables (LUTs) 8150

Block RAM 2700Kb

Expand IOs 114

Voltage Adjustable IOs 75

LVDS 37 Pairs

Chip Level Industrial Grade

Speed Grades -1

Working Temperature -40°C~85°C

Interface and Function

QSPI FLASH 128Mb, Used as Storage for FPGA Configuration Files and User Data

DDR3 2x 512MB DDR3 32bit, Data Rate 667Mbps

JTAG Reserve a 6-pin JTAG interface for Download and Debugging

Ｃrystal Oscillator50MHz Provide Stable Clock Source for the System Reserved One Crystal Oscillator Welding Plates for user

Expansion Ports 2x 80-Pin Panasonic Industrial Grade Connectors ( AXK580137YG ) The matching connector in the carrier board is AXK680337YG

Power Supply Parameters

Voltage Input +5V DC

DATA SHEET

TT-XIL-AC7050B

in stock INR

Xilinx

1 1
