5b98d18e549fbb6e141ea174 Z-turn Lite 7Z007S-C-S https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5b98d18e549fbb6e141ea174/images/5b98d18e549fbb6e141ea175/5b98d11f549fbb6e141e9edb/5b98d11f549fbb6e141e9edb.jpg

The Z-turn Lite is an ultra-cost-effective lite version of MYIR's Z-turn board. It is built around 667MHz Xilinx Zynq-7007S SoC which is among the new Zynq Z-7000S family with a Single-core ARM Cortex-A9 processor and integrated Artix-7 Field Programmable Gate Array (FPGA) logic. It is a minimal and compact system of Xilinx Z-7007S or Z-7010 SoC and provides numerous pending configuration of PL resources. It is an excellent reference design and evaluation board for development based on Xilinx Zynq-7000 series SoCs.

The Z-turn Lite takes full features of the Zynq Z-7007S or Z-7010 all programmable SoC.  It is equipped with 512MB DDR3, 4GB eMMC Flash, 16MB QSPI Flash and a set of peripherals including Micro USB OTG, 10/100/1000Mbps Ethernet, TF, JTAG, Debug UART, etc. Additionally, there is one 120 position connector socket on the rear of the board to bring out as many as IO signals for user extensions.The Z-turn Lite is capable of running Linux operating system and provided with Linux 3.15.0 SDK, the kernel and many drivers are in source code.

  • 667MHz Xilinx XC7Z007S Cortex-A9 Processor with Xilinx 7-series FPGA logic
  • 512MB DDR3 SDRAM (2 x 256MB, 32-bit)
  • 4GB eMMC Flash, 16MB QSPI Flash
  • USB2.0 OTG, 10/100/1000M Ethernet, TF, Debug UART, JTAG…
  • One 120 Position Connector Socket for Expansion interface
  • Ready-to-Run Linux Single Board Computer
  • Optional Camera and LCD Modules, IO Extension Cape
  • Dimensions 91 mm x 63 mm
  • Temperature range 0~70°Celsius
TT-MT-027
in stockINR 10044.16
FPGA
1 1

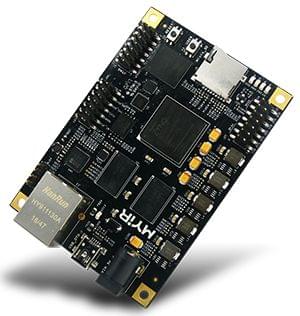

Z-turn Lite 7Z007S-C-S

Z-turn Lite 7Z007S-C-S

Sku: TT-MT-027
₹10,044.16


Sold By: tenettech
Features
  • Shipping in 10-12 Working days
  • http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5b98d18e549fbb6e141ea174/images/5b98d18e549fbb6e141ea175/5b98d11f549fbb6e141e9edb/5b98d11f549fbb6e141e9edb.jpg

Description of product

The Z-turn Lite is an ultra-cost-effective lite version of MYIR's Z-turn board. It is built around 667MHz Xilinx Zynq-7007S SoC which is among the new Zynq Z-7000S family with a Single-core ARM Cortex-A9 processor and integrated Artix-7 Field Programmable Gate Array (FPGA) logic. It is a minimal and compact system of Xilinx Z-7007S or Z-7010 SoC and provides numerous pending configuration of PL resources. It is an excellent reference design and evaluation board for development based on Xilinx Zynq-7000 series SoCs.

The Z-turn Lite takes full features of the Zynq Z-7007S or Z-7010 all programmable SoC.  It is equipped with 512MB DDR3, 4GB eMMC Flash, 16MB QSPI Flash and a set of peripherals including Micro USB OTG, 10/100/1000Mbps Ethernet, TF, JTAG, Debug UART, etc. Additionally, there is one 120 position connector socket on the rear of the board to bring out as many as IO signals for user extensions.The Z-turn Lite is capable of running Linux operating system and provided with Linux 3.15.0 SDK, the kernel and many drivers are in source code.

  • 667MHz Xilinx XC7Z007S Cortex-A9 Processor with Xilinx 7-series FPGA logic
  • 512MB DDR3 SDRAM (2 x 256MB, 32-bit)
  • 4GB eMMC Flash, 16MB QSPI Flash
  • USB2.0 OTG, 10/100/1000M Ethernet, TF, Debug UART, JTAG…
  • One 120 Position Connector Socket for Expansion interface
  • Ready-to-Run Linux Single Board Computer
  • Optional Camera and LCD Modules, IO Extension Cape
  • Dimensions 91 mm x 63 mm
  • Temperature range 0~70°Celsius
