Z-turn Kit with MYS-7Z010-C
Z-turn Kit with MYS-7Z010-C

Description of product

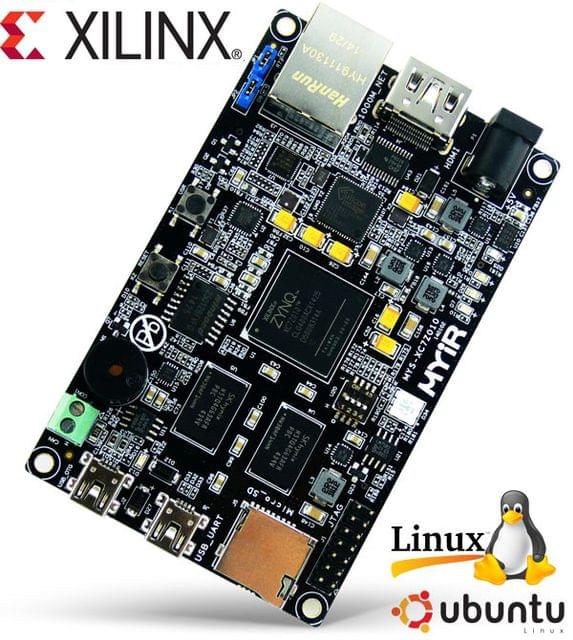

The Z-turn Board is capable of running Linux operating system. MYIR has provided Linux 3.15.0 SDK, the kernel and many drivers are in source code. The board is delivered with complete accessory kit including two USB cables, one Ethernet cable, one HDMI cable, one 4GB TF card and one 5V power adapter and product CD-ROM which enables you to start the development quickly when getting the board out-of-the-box. MYIR also offers optional WiFi and camera modules, Z-turn IO Cape for the Z-turn Board. The Z-turn IO Cape provides many peripheral signals and interfaces including ADC, GPIO, LCD, Camera and three Pmod interfaces.



The Z-turn Board is an excellent development platform for evaluating and prototyping for Zynq-7000 SoC. It can also be used as a System-on-Module (SOM) for your next embedded design; typical applications are Industrial Automation, Test & measurement, Medical Equipment, Intelligent Video Surveillance, Aerospace and military, etc.

SoC

Xilinx XC7Z010-1CLG400C (Zynq-7010)
- 667MHz ARM® dual-core Cortex™-A9 MPCore processor (up to 866MHz)
- Integrated Artix-7 class FPGA subsystem
with 28K logic cells, 17,600 LUTs, 80 DSP slices (for XC7Z010)
- NEON™ & Single / Double Precision Floating Point for each processor
- Supports a Variety of Static and Dynamic Memory Interfaces

Memory

1GB DDR3 SDRAM (2 x 512MB, 32-bit)

Storage

16MB QSPI Flash

TF card interface

Communications

1 x 10/100/1000M Ethernet

1 x CAN

1 x Mini USB2.0 OTG

1 x USB-UART debug interface

Display

1 x HDMI (supports 1080p resolution)
- We offer reference design for HDMI and LCD display functions without limitation for its. The IP cores in the design are provided by Xilinx. MYIR will provide Vivado project and SDK testing programs.

- We also offer reference design for using evaluation version of Xylon's logiCVC-ML and logiCLK IPcore. Please contact Xylon to buy the license of the IP core for logiCVC-ML or logiCLK.

http://www.logicbricks.com/Products/logiCVC-ML.aspx

http://www.logicbricks.com/Products/logiCLK.aspx

User I/O

Brought out via two 1.27mm pitch 80-pin SMT female connectors
- 90/106 user I/O (7010/7020)
- Configurable as up to 39 LVDS pairs I/O

Dimensions

63mm x 102mm x 1.6mm (8-layer PCB design)

Power supply

USB power supply or DC 5V/2A

Working Temp.

0~70 Celsius (commercial grade)

Others

Onboard three-axis acceleration sensor and temperature sensor
1 x 2.54mm pitch 14-pin JTAG interface

2 x Buttons (1x Reset, 1 x User)

4-channel toggle switch

5 x LEDs (3 x User LEDs, 1 x Power indicator, 1 RGB LED)

1 x Buzzer

OS support

Linux 3.15.0

Target Applications

Evaluation and Prototyping for Zynq-7000 AP SoC

Industrial Automation

Test & measurement

Medical Equipment

Intelligent Video Surveillance

Aerospace and military

Package List

- One Z-turn Board (MYS-7Z010-C-S or MYS-7Z020-C-S)
- One 1.5m cross Ethernet cable
- One 1.5m Mini USB2.0 cable
- One Mini USB OTG Data cable
- One HDMI cable
- One 4GB TF card
- One 5V/2A Power adapter
- One product disk (including user manual,
schematic in PDF format, datasheets
and software package)
