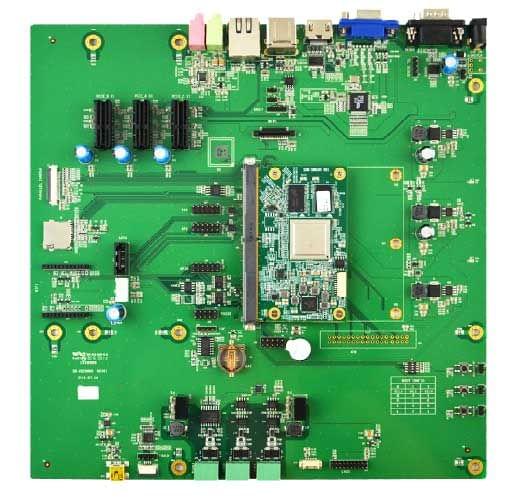

A full-feature evaluation baseboard for SOM-iMX6-MM(Part NO: SOM-SM9300) SMARC. Measuring by 243.84 mm x 243.84 mm, it provides plenty of interfaces including 2 USB2.0 Host high speed interfaces, 1 OTG, TF expansion, eMMC storage, 10-bit parallel camera, MIPI 2Lanes camera, HDMI, LVDS, expanded VGA, extended 4 line Touch, Gigabit network, 3 PCIE X1, SATA, WIFI and BT, MIC input, AUDIO output, I2S, UART, 2 CAN and RS485. In addition to AFB interface, part of UART, I2C, SPI, SPDIF input and output are separately connected for extension purpose.
NXP I.MX6Q. Cortex®-A9 32-Bit RISC Processor With Processing Speed up to 1GHz
Onboard DDR3 1GB
Support 4GB eMMC flash, 4MB QSPI, 32KB EEPROM
1* DB9 RS232 communication serial port
1* 10 bit digital camera interface
1* Gigabit Ethernet Interface (RJ45)
1* RS485 Interface
2* CAN Interfaces
2* USB2.0 Host Interfaces
1* USB OTG Interface
1* TF Card Interface (TF card and WIFI module cannot be used at the same time)
1* WIFI/BT Module Interface (TF card and WIFI module cannot be used at the same time)
3* PCIe X1 Standard expansion slots
Multiple 2.54-pitch extended Header interfaces (extended I2C, UART, SPI, GPIO, etc.)
MIC Input Interface
Audio Output Interface
Power Supply (12V Round hole DC Power Jack)
Reset Button/Power Button /Recovery Button
RTC Real Time Clock
Power Supply: 12V @2.5A
Operating humidity: 20% ~ 90%(no condensation)
Dimensions: 243.84 mm × 243.84 mm
PCB Layers: 4 layer design
OS Item Features Description
Linux Kernel Version 4.1.6
Drivers USB OTG,USB Host, Gigabit Ethernet, TF, eMMC , EEPROM, SPI-Flash, CAN, RS485, Audio, LCD Controller (supports 4.3- and 7-inch LCD), RTC, HDMI, VGA, Touch driver, Button, UART, LED, Camera, WiFi
File system UBIFS Default root file system used by debian
