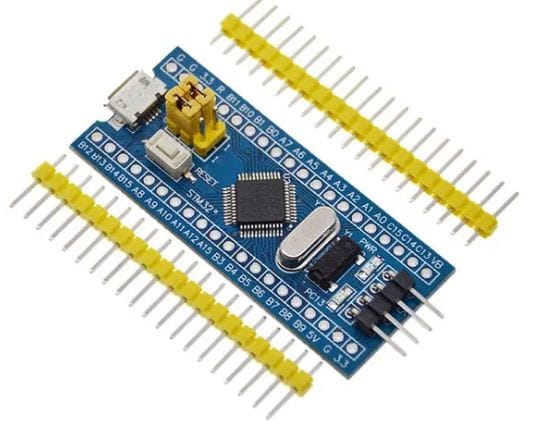

608674ffdb8ae85d48da71a9 STM32F103C8T6 SYSTEM BOARD SINGLE CHIP CORE BOARD STM32 ARM https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6086739adb8ae85d48da4137/stm32.JPG

Description:

The STM32F1038T6 board is a low cost STM32 microcontroller development board for learners.

Specifications:
  • 64KB Flash memory
  • 20 K bytes of SRAM
  • 2.0 to 3.6 V application supply and I/Os
  • 4-to-16 MHz crystal oscillator
  • Internal 40 kHz RC
  • 32 kHz oscillator for RTC with calibration
  • 2 x 12-bit, 1μs A/D converters (up to 16 channels)
  • 7-channel DMA controller
  • Peripherals supported: timers, ADC, SPIs, I2Cs and USARTs
  • Up to 2 x I2C interfaces (SMBus/PMBus)
  • Up to 3 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control)
  • Up to 2 SPIs (18 Mbit/s)
  • CAN interface (2.0B Active)

Package Includes:
  • 1 x STM32F103C8T6 system board single chip core board STM32 ARM
 TT-RKS-1157
in stock INR
1 1
STM32F103C8T6 SYSTEM BOARD SINGLE CHIP CORE BOARD STM32 ARM

STM32F103C8T6 SYSTEM BOARD SINGLE CHIP CORE BOARD STM32 ARM

Sku: TT-RKS-1157
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Lead time is 10-12 working days

Description of product

Description:

The STM32F1038T6 board is a low cost STM32 microcontroller development board for learners.

Specifications:
  • 64KB Flash memory
  • 20 K bytes of SRAM
  • 2.0 to 3.6 V application supply and I/Os
  • 4-to-16 MHz crystal oscillator
  • Internal 40 kHz RC
  • 32 kHz oscillator for RTC with calibration
  • 2 x 12-bit, 1μs A/D converters (up to 16 channels)
  • 7-channel DMA controller
  • Peripherals supported: timers, ADC, SPIs, I2Cs and USARTs
  • Up to 2 x I2C interfaces (SMBus/PMBus)
  • Up to 3 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control)
  • Up to 2 SPIs (18 Mbit/s)
  • CAN interface (2.0B Active)

Package Includes:
  • 1 x STM32F103C8T6 system board single chip core board STM32 ARM
