PICPLC16 v6

Description of product

Description

WHAT’S ON BOARD

PICPLC16 v6
programmer

mikroICD and programmer

Onboard fast USB 2.0 programmer and in-circuit debugger for testing and debugging programs on PIC devices.

WHAT IS PICPLC16™ V6

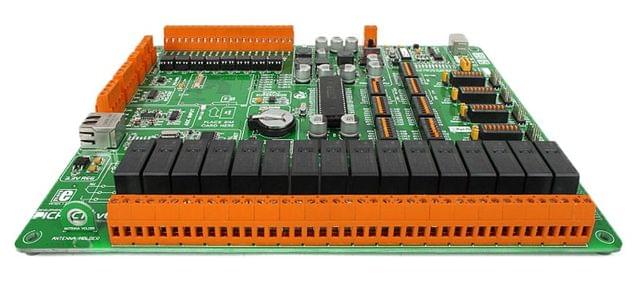

PICPLC16 v6 is a PLC system with 16 opto-inputs and 16 relays (for currents up to 16A). With it, you can develop PIC-based industrial, home or office automation devices the easy way—PICPLC16 has all the MikroElektronika features you’re familiar with: onboard programmer and mikroICD debugger, clear silkscreen markings, and many onboard modules.

mikroICD™ on board - PICPLC16 has a built-in powerful mikroICD debugger for testing the executed program in real time at hardware level. Whether you are a beginner, or a well-trained professional, this remarkable feature is an irreplecable advantage.

PICPLC16

MODULES

ETHERNET ON-BOARD

MikroE PICPLC16 v6 ethernet on-board

The Serial Ethernet connector lets you connect your PLC system to a network.

RTC

MikroE PICPLC16 v6 rtc

The RTC module with its own battery will keep precise time for the system.

ANTENNA HOLDER

MikroE PICPLC16 v6 antenna holder

The antenna holder fixes the external GSM antenna in place.

RELAYS

MikroE PICPLC16 v6 relays

16 relays for currents of up to 16 amps line the side of the board.

GSM CONNECTOR

MikroE PICPLC16 v6 gsm connector

GSM connector for adding telecommunication capabilities to your PLC.

GSM AUDIO

MikroE PICPLC16 v6 gsm audio

Speaker and microphone connectors are for the GSM module.
