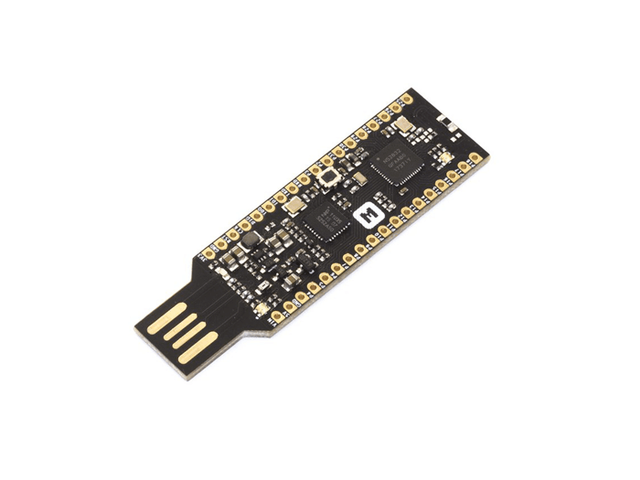

nRF52832-MDK V2 IoT Micro Development Kit
nRF52832-MDK V2 IoT Micro Development Kit

Description of product

$36.00

Description

The nRF52832-MDK V2 is a fully open-source, plug-and-play, versatile single board development kit for Bluetooth® low energy, ANT and 2.4GHz proprietary applications using the nRF52832 SoC.



The kit gives access to 24 I/Os and interfaces via headers and has a RGB LED which is user-programmable. It also has a 2.4GHz chip antenna onboard which is quite convenient to develop IoT wireless applications.



It supports the Nordic offical SDK using GCC, Keil and IAR. Program/Debug options on the kit is DAPLink.



The nRF52832-MDK V2 can also be used to play with multi-frameworks such as: nRF5 SDK, nRF5 SDK for Mesh, Mbed OS 5, Zephyr, Mynewt, JerryScript, Espruino, MicroPython, Web Bluetooth, Eddystone, etc.

Hardware Specification

nRF52832-MDK V2 provides the following hardware features:

  • Nordic Semiconductor nRF52832

  • ARM® Cortex™-M4F

  • 512kB Flash Memory + 64kB RAM

  • Bluetooth low energy, ANT and 2.4GHz

  • NFC™-A tag

  • Program/Debug options with DAPLink

  • MSC - drag-n-drop programming flash memory

  • CDC - virtual com port for log, trace and terminal emulation

  • HID - CMSIS-DAP compliant debug channel

  • Up to 24 GPIOs at headers

  • Reset Button

  • RGB LED

  • 2.4GHz chip antenna

  • 3.3V regulator with 1A peak current output

  • VBUS & VIN Power-Path Management

  • Breadboard-friendly

  • 63mm x 18mm x 4mm without headers soldered in

DAPLink Integrated

Arm Mbed DAPLink is an open-source software project that enables programming and debugging application software on running on Arm Cortex CPUs. Commonly referred to as interface firmware, DAPLink runs on a secondary MCU that is attached to the SWD port of the application MCU. Enumerating as a USB composite device, it creates a bridge between your development computer and the CPU debug access port. DAPLink enables developers with:

  • MSC - drag-n-drop programming flash memory

  • CDC - virtual com port for log, trace and terminal emulation

  • HID - CMSIS-DAP compliant debug channel

Pinout Diagram


Technical Details

Dimensions48mm x 18mm x 13mm
WeightG.W 14g    N.W 12g
BatteryExclude

Part List

nRF52832-MDK V21
1x18Pin 2.54mm Header2
