MYC-C437X CPU Module

Description of product

MYC-C437X CPU Module | TI AM437x, AM4376, AM4377, AM4378, AM4379-Welcome to MYIR

The MYC-C437X CPU Module integrates the AM437x processor, 512MB DDR3 SDRAM, 4GB eMMC Flash, 32KB EEPROM, Gigabit Ethernet PHY and Power Management IC TPS65218 on board and can be served as the controller board of your next design. It has two 0.8mm pitch 2*50-pin board-to-board expansion connectors for interconnecting with your base board, thus providing an interface for the base board to carry most of the I/O signals to and from the CPU module.

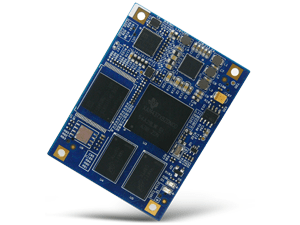

MYC-C437X CPU Module


The AM437x processor family consists of 4 pin-pin compatible devices (AM4376, AM4377, AM4378 and AM4379) with various options including speed grades, packages, graphics and peripherals. MYIR delivers the MYC-C437X with AM4377 or AM4378 processor by default. From the image below we can see if you need EtherCAT support, the MYC-C4377 module would be suitable; if you need 3D graphics acceleration to support display and advanced user interfaces, the MYC-C4378 module may fit your needs.

AM437x Devices


MYIR has also designed two development boards for evaluating the MYC-C437X CPU Module. The two boards are all built around the MYC-C437X CPU Module but the base board designs are different to satisfy customers’ different requirements. The MYD-C4378 development board features versatile peripheral interfaces extended on base board including four USB Host ports, one USB OTG, two Gigabit Ethernet ports, two CAN, two camera interfaces, TF card slot, HDMI and LCD interfaces but it could not support PRU-ICSS. The MYD-C4377-PRU development board is designed especially for PRU-ICSS applications, it features one Gigabit Ethernet port as well as two 10/100Mpbs Ethernet ports from the PRU-ICSS subsystems and uses TI SYS/BIOS v6.45 Real-time Operating System. Besides, both of the two boards can run Linux OS and are provided with software packages and detailed documentation sources. They are excellent platforms for customers’ evaluation and prototype based on TI’ AM437x solution.


MYD-C437X Development Board


MYD-C437X-PRU Development Board


Mechanical Parameters

  • Dimensions: 60mm x 45mm
  • PCB Layers: 8-layer design
  • Power supply: 5V/0.33A
  • Working temperature: 0~70 Celsius (commercial grade) or -40~85 Celsius (industrial grade)


  • TI AM437x (AM4376, AM4377, AM4378 and AM4379)
    - Up to 1GHz Sitara ARM Cortex-A9 32-Bit RISC processor
    - POWERVR SGX Graphics Accelerator subsystem for 3D graphics acceleration to support display and gaming effects
    - Single-cycle vector floating point (VFP)
    - Dual camera and display processing subsystem
    - Cryptographic acceleration and secure boot
    - PRU-ICSS enables simultaneous industrial Ethernet protocols and motor feedback protocols
    - Support for 32 bit LPDDR2/DDR3/DDR3L
    - Low power: ~5mW deep sleep and < 0.1mW RTC-only
    - Simplified power sequence for flexible power designs


  • 512MB DDR3 SDRAM
  • 4GB eMMC Flash (reserved 256/512MB Nand Flash design)
  • 16MB QSPI Flash (reserved design, not soldered on board)

Peripherals and Signals Routed to Pins

MYC-C437x Pinouts Description

  • Power Management IC (TPS65218)
  • Gigabit Ethernet PHY
  • One power indicator (Red LED)
  • One user LED (Green)
  • Two 0.8mm pitch 100-pin board-to-board expansion connectors can carry out interfaces below:
    - 2 x USB
    - 6 x Serial ports
    - 2 x I2C
    - 2 x CAN
    - 2 x SPI
    - 14 x ADC (8 channels from ADC1 and 6 channels from ADC0)
    - 3 x SDIO

OS Support

  • Linux 3.12.10 (for MYD-C437X)
  • Linux 4.1.18 (for MYD-C437X-PRU)
  • SYS/BIOS 6.45 (TI-RTOS) OS (for MYD-C437X-PRU)
