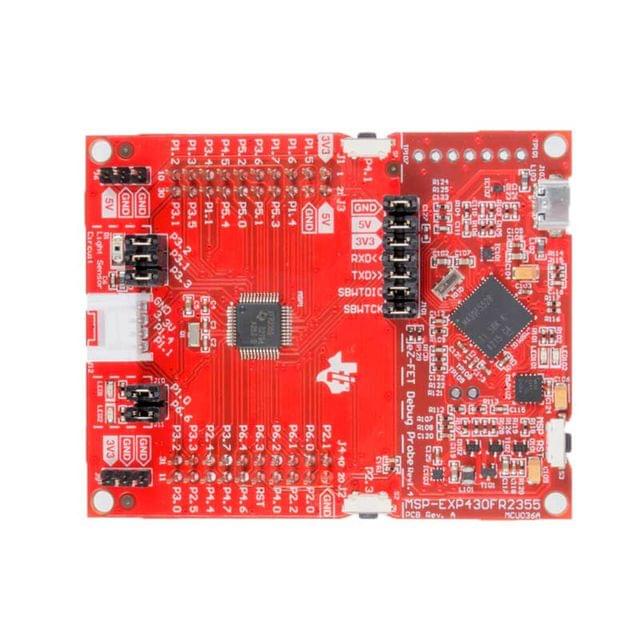

MSP-EXP430FR2355 LaunchPad

MSP-EXP430FR2355 LaunchPad

Sku: TT-MSB- MSP-EXP430FR2355

Sold By: tenettech
  • Shipping in 10-12 Working days

Description of product

Texas Instruments MSP-EXP430FR2355 LaunchPad™ Development Kit is an easy-to-use evaluation module (EVM) based on the MSP430FR2355 Value Line microcontroller (MCU). This development kit contains everything needed to start developing on the ultra-low-power MSP430FR2x Value Line MCU platform, including onboard debug probe for programming, debugging and energy measurements. The board includes 2 buttons and 2 LEDs for creating a simple user interface. The development kit also has an ambient light sensor and connector for external analog sources.


  • ULP FRAM technology based on the MSP430FR2355 16-bit MCU with a smart analog combo
  • Onboard eZ-FET debug probe with EnergyTrace Technology available for ultra-low-power debugging
  • 40-pin LaunchPad headers to leverage the BoosterPack ecosystem
  • 2 buttons and 2 LEDs for user interaction
  • Onboard ambient light sensor
  • Onboard Grove module interface to add external sensors, actuators and more
