5d73887637aec35f592d31a7 MSP-EXP432P401R LaunchPad https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5d73887637aec35f592d31a7/images/5d8c70279a4b836915294e4e/5d8c6fe0bb89c969ff4bcf00/5d8c6fe0bb89c969ff4bcf00.jpg

Description

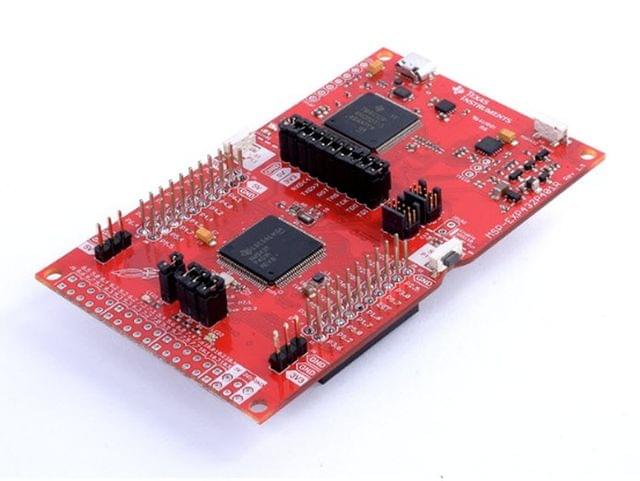

Texas Instruments MSP-EXP432P401R LaunchPad Development Kit enables you to develop high-performance applications that benefit from low power operation. The kit features the MSP432P401R, which includes a 48MHz ARM Cortex M4F core, 95uA/MHz active power and 850nA RTC operation, 14-bit 1MSPS differential SAR ADC and AES256 accelerator. This includes an on-board emulator with EnergyTrace+ Technology, which means you can program and debug your projects without the need for additional tools, while also measuring total system energy consumption. All pins of the MSP-EXP432P401R device are fanned out for easy access. These pins make it easy to plug in 20-pin and 40-pin BoosterPacks that add additional functionality like wireless, capacitive touch and more.

Features

  • Low-power, high performance MSP432P401R MCU
    • 48MHz 32-bit ARM Cortex M4F with Floating Point Unit and DSP acceleration
    • Power consumption: 95uA/MHz active, and 850nA RTC standby operation
    • Analog: 24Ch 14-bit differential 1MSPS SAR ADC, Two Comparators
    • Digital: Advanced Encryption Standard (AES256) Accelerator, CRC, DMA, HW MPY32
    • Memory: 256KB Flash, 64KB RAM
    • Timers: 4x16-bit, and 2x32-bit
    • Communication: Up to 4 I2C, 8 SPI, 4 UART
  • 40 pin BoosterPack Connector, and support for 20 pin BoosterPacks
  • On-board XDS-110ET emulator featuring EnergyTrace+ Technology
  • 2 buttons and 2 LEDs for User Interaction
  • Back-channel UART via USB to PC
TT-MSB-MSP-EXP432P401R
out of stock INR
TI LAUNCHPADS
1 1
MSP-EXP432P401R LaunchPad

MSP-EXP432P401R LaunchPad

Sku: TT-MSB-MSP-EXP432P401R
Be the first to review this product
Sold Out
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech

Description of product

Description

Texas Instruments MSP-EXP432P401R LaunchPad Development Kit enables you to develop high-performance applications that benefit from low power operation. The kit features the MSP432P401R, which includes a 48MHz ARM Cortex M4F core, 95uA/MHz active power and 850nA RTC operation, 14-bit 1MSPS differential SAR ADC and AES256 accelerator. This includes an on-board emulator with EnergyTrace+ Technology, which means you can program and debug your projects without the need for additional tools, while also measuring total system energy consumption. All pins of the MSP-EXP432P401R device are fanned out for easy access. These pins make it easy to plug in 20-pin and 40-pin BoosterPacks that add additional functionality like wireless, capacitive touch and more.

Features

  • Low-power, high performance MSP432P401R MCU
    • 48MHz 32-bit ARM Cortex M4F with Floating Point Unit and DSP acceleration
    • Power consumption: 95uA/MHz active, and 850nA RTC standby operation
    • Analog: 24Ch 14-bit differential 1MSPS SAR ADC, Two Comparators
    • Digital: Advanced Encryption Standard (AES256) Accelerator, CRC, DMA, HW MPY32
    • Memory: 256KB Flash, 64KB RAM
    • Timers: 4x16-bit, and 2x32-bit
    • Communication: Up to 4 I2C, 8 SPI, 4 UART
  • 40 pin BoosterPack Connector, and support for 20 pin BoosterPacks
  • On-board XDS-110ET emulator featuring EnergyTrace+ Technology
  • 2 buttons and 2 LEDs for User Interaction
  • Back-channel UART via USB to PC
