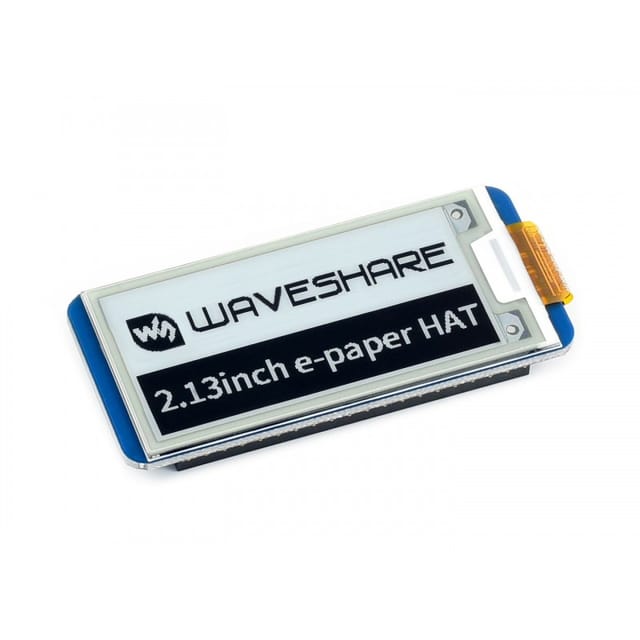

2.13inch E- Paper Display HAT for Raspberry Pi
2.13inch E- Paper Display HAT for Raspberry Pi

Description of product

Overview

This is an E-Ink display HAT for Raspberry Pi, 2.13inch, 250x122 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.

Due to the advantages like ultra low power consumption, wide viewing angle, great effect under sunlight, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Compatible with Raspberry Pi 2B/3B/Zero/Zero W
  • Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications

  • Operating voltage: 3.3V
  • Interface: SPI
  • Outline dimension: 65mm × 30.2mm
  • Display size: 23.71mm × 48.55mm
  • Dot pitch: 0.194 × 0.194
  • Resolution: 250 × 122
  • Display color: black, white
  • Grey level: 2
  • Refresh power: 26.4mW(typ.)
  • Standby power: <0.17mW
  • Viewing angle: >170°

Interface

SYMBOLDESCRIPTION
VCC3.3V
GNDGround
NCNC
DINSPI MOSI pin
CLKSPI SCK pin
CSSPI chip selection, low active
DCData/Command selection (high for data, low for command)
RSTExternal reset, low active
BUSYBusy status output, low active
