5a7e9927c75934b1f60ca6c3 640x384, 7.5inch E-Ink display HAT for Raspberry Pi https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5a7e9927c75934b1f60ca6c3/images/5a7e9927c75934b1f60ca6c4/5a7e98eecc3d94b1cc7a70ff/5a7e98eecc3d94b1cc7a70ff.jpg

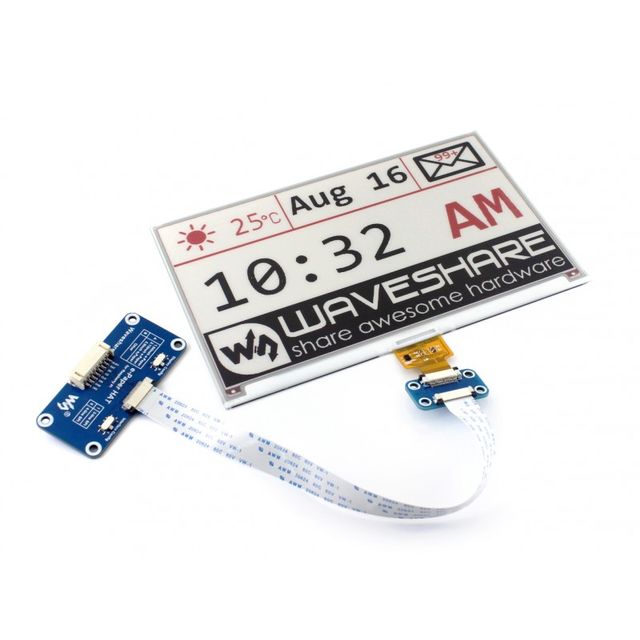

This is an E-Ink display HAT for Raspberry Pi, 7.5inch, 640x384 resolution, with embedded controller, communicating via SPI interface. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on

Features :

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Compatible with Raspberry Pi 2B/3B/Zero/Zero W
  • SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications :

  • Operating voltage: 3.3V
  • Interface: SPI
  • Outline dimension: 170.2mm × 111.2mm
  • Display size: 163.2mm × 97.92mm
  • Dot pitch: 0.255 × 0.255
  • Resolution: 640 × 384
  • Display color: black, white
  • Grey level: 2
  • Full refresh time: 6s
  • Refresh power: 38mW(typ.)
  • Standby power: <0.017mW
  • Viewing angle: >170°
 TT-WS-14229
in stock INR
WAVESHARE
1 1
640x384, 7.5inch E-Ink display HAT for Raspberry Pi

640x384, 7.5inch E-Ink display HAT for Raspberry Pi

Sku: TT-WS-14229
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working days
  • http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5a7e9927c75934b1f60ca6c3/images/5a7e9927c75934b1f60ca6c4/5a7e98eecc3d94b1cc7a70ff/5a7e98eecc3d94b1cc7a70ff.jpg

Description of product

This is an E-Ink display HAT for Raspberry Pi, 7.5inch, 640x384 resolution, with embedded controller, communicating via SPI interface. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on

Features :

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Compatible with Raspberry Pi 2B/3B/Zero/Zero W
  • SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications :

  • Operating voltage: 3.3V
  • Interface: SPI
  • Outline dimension: 170.2mm × 111.2mm
  • Display size: 163.2mm × 97.92mm
  • Dot pitch: 0.255 × 0.255
  • Resolution: 640 × 384
  • Display color: black, white
  • Grey level: 2
  • Full refresh time: 6s
  • Refresh power: 38mW(typ.)
  • Standby power: <0.017mW
  • Viewing angle: >170°
