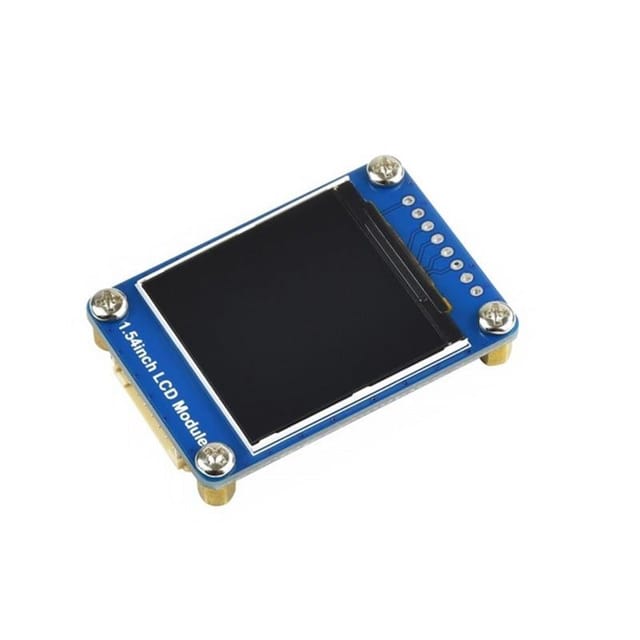

This is a general LCD display Module from Waveshare with a TFT screen, 1.54inch diagonal, 240X240 resolution, and embedded controller ST7789 communicating via SPI interface.

This lovely little display breakout is the best way to add a small, colorful, and bright display to any project. Even a very small one with low memory and few pins available!

And the 1.54 Inch SPI 240X240 TFT LCD Display Module will always come with the same driver chip so there are no worries that your code will not work from one to the other.

The breakout has the TFT display soldered on (it uses a delicate flex-circuit connector) as well as an ultra-low-dropout 3.3V regulator and a 3/5V level shifter so you can use it with 3.3V or 5V power and logic.

Compatible Models:

Features:

1. SPI interface requires minimum GPIO for controlling.
2. Compatible with the 3.3/5V operation voltage level.
3. Features Backlight Control Circuit.
4. The basic functions have been encapsulated on the demo, which can realize picture rotation, draw dots, lines, circles, rectangles, and display pictures.

Useful link:

To do Hardware and Software setup, please follow this tutorial.

Package Includes:

1 x Waveshare 240×240 General 1.54inch LCD Display Module IPS 65K RGB
