68b2be4aa5ae76d21d9bee64 MCP3004-I/ST-MICROCHIP-Analogue to Digital Converter, 10 bit, 200 kSPS, Pseudo Differential, Single Ended, Serial, SPI https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/68b2be4aa5ae76d21d9bee66/150c04-087st14-1.jpg

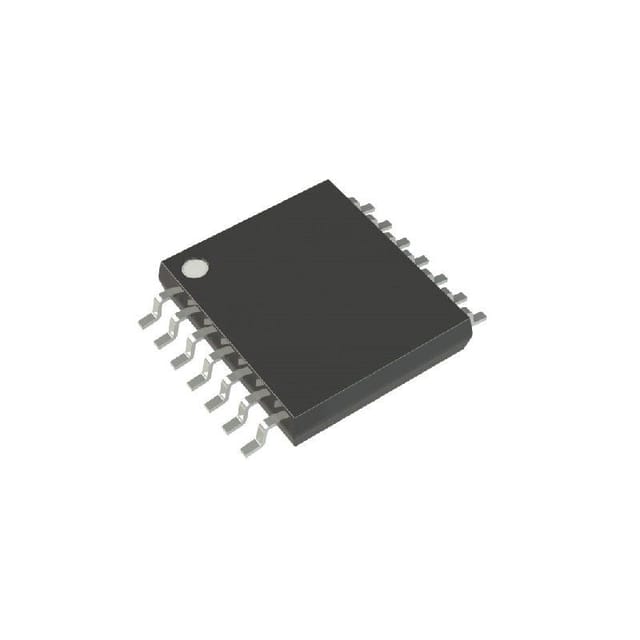

MCP3004-I/ST-MICROCHIP-Analogue to Digital Converter, 10 bit, 200 kSPS, Pseudo Differential, Single Ended, Serial, SPI. The MCP3004-I/ST is a 4-channel 10-bit Analog-to-Digital Converter (ADC) from Microchip Technology. It is part of the MCP3000 series, which provides a way to convert analog signals into digital signals for use in microcontroller or other digital systems.

Note: Images for reference only.

Features:

  • 4-Channel Analog Input
  • SPI Communication
  • Low Power Consumption
  • Single Supply Voltage
  • 10-Bit Resolution

Specifications:

  1. Number of Bits: 10
  2. Sampling Rate (Per Second): 200k
  3. Number of Inputs: 2, 4
  4. Input Type: Pseudo-Differential, Single Ended
  5. Data Interface: SPI
  6. Configuration: MUX-S/H-ADC
  7. Ratio – S/H:ADC: 1:1
  8. Number of A/D Converters: 1
  9. Architecture: SAR
  10. Reference Type: External
  11. Voltage – Supply, Analog: 2.7V ~ 5.5V
  12. Voltage – Supply, Digital: 2.7V ~ 5.5V

For detailed specifications, please refer to datasheet in Attachments.

Package Includes:

1 x MCP3004-I/ST-MICROCHIP-Analogue to Digital Converter, 10 bit, 200 kSPS, Pseudo Differential, Single Ended, Serial, SPI

 TT-RB-R207839
in stock INR
1 1

MCP3004-I/ST-MICROCHIP-Analogue to Digital Converter, 10 bit, 200 kSPS, Pseudo Differential, Single Ended, Serial, SPI

Sku: TT-RB-R207839
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

MCP3004-I/ST-MICROCHIP-Analogue to Digital Converter, 10 bit, 200 kSPS, Pseudo Differential, Single Ended, Serial, SPI. The MCP3004-I/ST is a 4-channel 10-bit Analog-to-Digital Converter (ADC) from Microchip Technology. It is part of the MCP3000 series, which provides a way to convert analog signals into digital signals for use in microcontroller or other digital systems.

Note: Images for reference only.

Features:

  • 4-Channel Analog Input
  • SPI Communication
  • Low Power Consumption
  • Single Supply Voltage
  • 10-Bit Resolution

Specifications:

  1. Number of Bits: 10
  2. Sampling Rate (Per Second): 200k
  3. Number of Inputs: 2, 4
  4. Input Type: Pseudo-Differential, Single Ended
  5. Data Interface: SPI
  6. Configuration: MUX-S/H-ADC
  7. Ratio – S/H:ADC: 1:1
  8. Number of A/D Converters: 1
  9. Architecture: SAR
  10. Reference Type: External
  11. Voltage – Supply, Analog: 2.7V ~ 5.5V
  12. Voltage – Supply, Digital: 2.7V ~ 5.5V

For detailed specifications, please refer to datasheet in Attachments.

Package Includes:

1 x MCP3004-I/ST-MICROCHIP-Analogue to Digital Converter, 10 bit, 200 kSPS, Pseudo Differential, Single Ended, Serial, SPI
