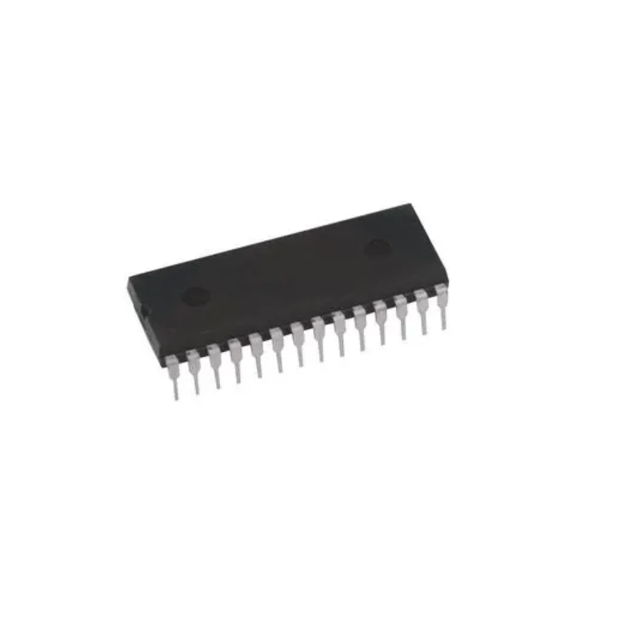

MCP23S17-E/SP-MICROCHIP-I/O Expander, 16 bit, Serial, SPI, 1.8 V, 5.5 V, DIP, 28 Pins.The MCP23X17 consists of multiple 8-bit configuration registers for input, output and polarity selection. The system master can enable the I/Os as either inputs or outputs by writing the I/O configuration bits (IODIRA/B). The data for each input or output is kept in the corresponding input or output register. The polarity of the Input port register can be inverted with the polarity inversion register.

Note: Images for reference only.

Specifications:

For detailed specifications, please refer to datasheet in Attachments.

Package Includes:

1 x MCP23S17-E/SP-MICROCHIP-I/O Expander, 16 bit, Serial, SPI, 1.8 V, 5.5 V, DIP, 28 Pins
