TSL-012 is an on/off smd tactile switch that is only on when the button is pressed or if there is a definitive change in pressure. The Tactile Switch applications include: Low power, miniature devices, digital switching, anything where operator feedback is required (a switch confirmation coming from the switch being depressed) will find that the perfect choice is a Tactile switch. Daier offers a broad range of miniature tactile, ultra-miniature tactile and micro miniature tactile switches for printed circuit board mounting.  Available in J bend, gull wing, illuminated, sealed, low-profile, low-noise, SMT and through hole versions, Daier’s tactile switches are designed for the most demanding applications.

Specifications:

1. LED voltage: 2-3V
2. Operating force: 260±130gf
3. LED color: Red, Green, Yellow, Blue, White
4. Travel: 0.25mm
5. Operating Direction: Top Push
6. Initial contact resistance: 50mΩ max.
7. Operating Life: Over 100,000 cycles
8. Operating Temperature: -25℃~+105℃
9. Rating (max.): 50mA 12V DC
10. Rating (min.): 10µA 1V DC
11. SPQ: 1,000pcs
12. OEM or ODM: Available

Package Includes:

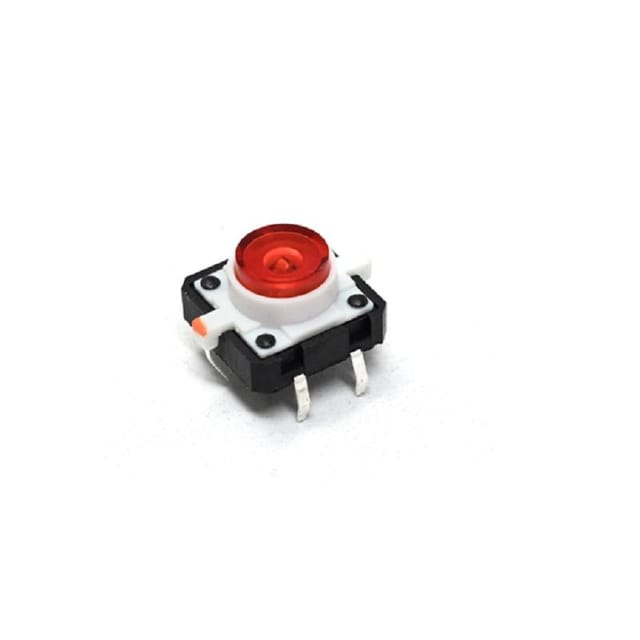

1 x TSL-012-Illuminated Tactile Switch Tact Switch(12X12X7.2mm)
