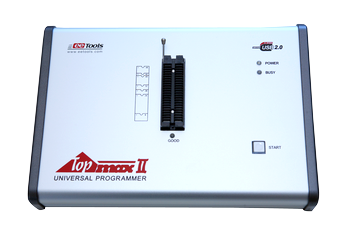

TOPMAX II - EXPERT UNIVERSAL DEVICE PROGRAMMER

Description of product

TopMaxII is a high-speed universal device programmer for USB 1.1/2.0/3.0 PC-interface. It programs a 64Mbit (AM29LV641) flash memory in 42 seconds. This is a true low-price production oriented system. The TopMaxII meets the demands of today's programming solution for lab and production line applications..

  • High-speed Universal Programmer
  • Support USB 1.1 / 2.0 / 3.0 Port in PC.

    KEY FEATURES

    product

    SOFTWARE

    • Auto search device select function supports E(E)PROMs & Microcontrollers.
    • Device insertion test identifies improperly inserted device before programming.
    • Gang Program Mode allows programmers up to 8 units as concurrent programming system. (External START key allows TopMaxll to operate in stand-alone mode)
    • Check for incorrect device insertion, backward, incorrect position, and poor pin contact.
    • Device Operations: Read,Biank check, Program, Verify, Checksum, Data compare, Security, Auto(blank checkprogram- verify), Option Bit program.
    • Display programming parameters and optional bit information on the screen.
    • Set device/buffer address ranges before programming devices.
    • Extensive on-line F1 help system provides text and graphics.
    • User-changeable programming parameters.
    • Built-in editor for both buffer date and test vectors.
    • Support Binary and all hex files (POF and JEDEC, Intel Hex, Motorola S Records, Tekhex , straight hex, hex-space, Extended Tekhex, and others, automatic file type recognition) with Load,Edit, and Save commands.

    HARDWARE

    • One on-board FPGA for extremely fast communication.
    • Supports real low-voltage support : 5, 3.3, 2.7, 1.8, 1.5 volt for programming power.
    • Detects all pin locations for poor or damaged pin contacts.
    • External START key allows production programming mode.
    • Internal universal power supply, 110-240 VAC (no separate power supply required in foreign country).
    • Current limiting protects hardware circuit from improperly inserted or defective chips and operation errors.
    • Standard 48-pin ZIF(Zero Insertion Foroe) socket accepts both 300mil and 600 mil DIP devices.
    • True universal pin driver hardware.
    • Support a high-speed USB2.0 port for PC interface.
    • Support a standard IEEE-1149.1 (JTAG) port
    • Hardware diagnostic program exams all socket-pin drivers before using programmer

      TECHNICAL SPECIFICATIONS

        • Module: 11.0(L) x 7.25(W) x 2.5(H)
        • Weight: 3.25 lbs
        • Socket: Textool 48 pin ZIF standard.

      SYSTEM REQUIREMENT

      • TYPE: 386, 486, Pentium or compatibles. PS/2, Portable(notebook) computer.
      • A hard disk drive (4 Megabytes) is recommended for software installation / set up.
      • PC RAM size: 512K of conventional memory
      • I/O PORT: USB 1.1/2.0/3.0 port
      • OS: WINDOWS 95 / 98 / 2000 / NT / XP / 7 / 8 or greater

      STANDARD ACCESSORIES

      • Power Cord
      • USB Cable
      • Software CD
      • User's Guide

      SAFETY STANDARDS

      • CE compliant

      WARRANTY

      • One year hardware warranty service in factory
