TMDSCNCD28035 is a DIMM100 controlCARD based evaluation and development tool for the F2803x series. controlCARDs are complete board-level modules that utilize one of two standard form factors (100-pin DIMM or 180-pin HSEC) to provide a low-profile single-board controller solution.

For first evaluation, controlCARDs are typically purchased bundled with a docking station or an application kit. The TMDSCNCD28035 control card requires a DIMM100 baseboard to function.

Hardware Features

• TMDSCNCD28035: TMS320F28035 DIMM100 based controlCARD
• Small form factor
• Isolated RS-232 interface
• F28x analog I/O, digital I/O and JTAG signals to DIMM interface
• 5V power and JTAG debug probe required from DIMM interface
• Hardware Files are in C2000Ware at boards\controlCARDs\TMDSCNCD28035

Includes..

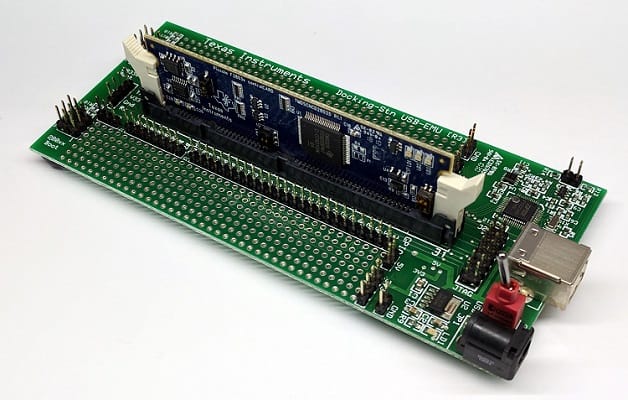

• TMDSCNCD28035 Piccolo F28035 controlCARD
• DIMM100 Docking Station baseboard
• USB Cable (Type-A Plug to Type-B Plug)
