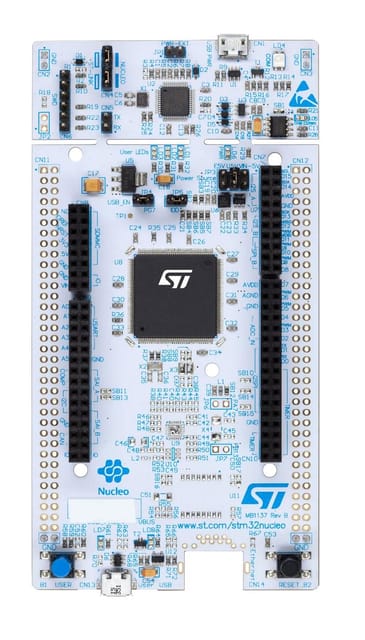

The STMICROELECTRONICS NUCLEO-F722ZE Development Board provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features, provided by the STM32 microcontroller. For the compatible boards, the internal or external SMPS significantly reduces power consumption in Run mode.

The ST Zio connector, which extends the ARDUINO^® Uno V3 connectivity, and the ST morpho headers provide an easy means of expanding the functionality of the Nucleo open development platform with a wide choice of specialized shields.The STMICROELECTRONICS NUCLEO-F722ZE Development Board does not require any separate probe as it integrates the ST-LINK debugger/programmer.

The STMICROELECTRONICS NUCLEO-F722ZE Development Board comes with the STM32 comprehensive free software libraries and examples available with the STM32Cube MCU Package.

Features :

1. Microcontroller Options: LQFP144 or TFBGA225
2. User Interface: 3 user LEDs, 2 push-buttons (1 reset)
3. Oscillator: 32.768 kHz crystal
4. Expansion Connectors: ST Zio (ARDUINO® compatible), ST morpho
5. Power Supply: ST-LINK USB, external sources, internal/external SMPS
6. Debugger: Onboard ST-LINK
7. Software Support: STM32Cube libraries and examples
8. IDE Compatibility: IAR Embedded Workbench®, MDK-ARM, STM32CubeIDE
9. Ethernet Support: Available on specific models (IEEE-802.3)
10. USB Connectivity: Device only, USB OTG, Micro-AB, Type-C®

Specifications:

1. Microcontroller Package: LQFP144 or TFBGA225
2. LEDs: 3 user
3. Buttons: 2 (1 reset)
4. Connectors: SWD, ST Zio, ST morpho
5. Power Options: ST-LINK USB VBUS, external
6. Integrated Debugger: ST-LINK with USB re-enumeration
7. Software Support: STM32Cube MCU Package (libraries and examples)
8. IDE Compatibility: Supports IAR Embedded Workbench®, MDK-ARM, STM32CubeIDE
9. Ethernet Support: Available on specific model

Package include:

1 x STMICROELECTRONICS NUCLEO-F722ZE Development Board
