Description

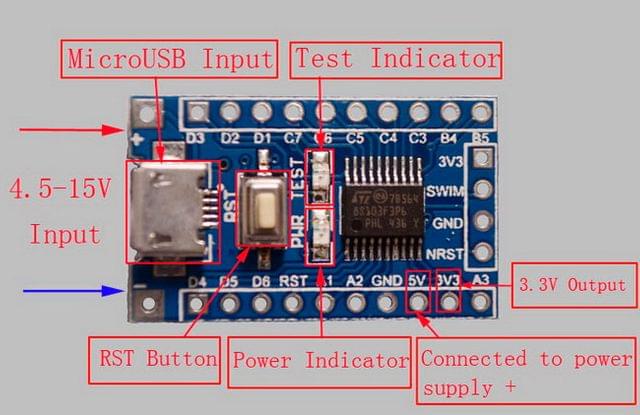

This development board is a minimal breakout board for the STM8S003F3P6 STM8 microcontroller. All of the I/O pins are marked and routed to standard 2.54 mm pins for convenient use.

Specifications of  STM8S103f3p6 Development Board

  • On-board STM8S003F3P6 chip
  • On-board SWIM connector for programming
  • On-board reset switch
  • Reserved external crystal oscillator soldering place
  • AMS1117-3.3  voltage regulator for convering 5 V power supply to 3.3 V
  • Mini USB connector for powering the board
  • Board Size: 36.5 x 21.6 mm

Related Links

  • Starting with STM8S103f2p6
  • STM8 Tutorial for LED Blinking

TT-DTK-1713
in stockINR 227
