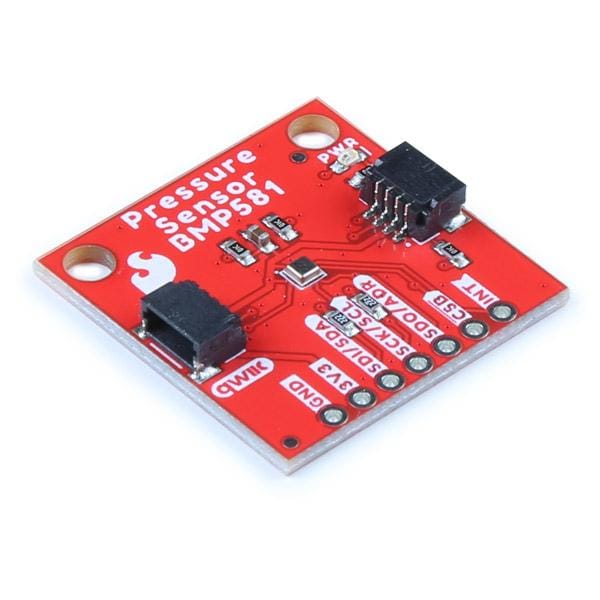

The SparkFun Qwiic BMP581 Pressure Sensor is a standard-sized, . absolute pressure sensor breakout from Bosch Sensortec. The BMP581 boasts exceptional resolution (down to 1/64Pa) and accuracy while maintaining on-chip linearization and temperature compensation to provide true absolute data for pressure and temperature. The Qwiic Pressure Sensor communicates over I²C by default, utilizing our handy Qwiic Connect System so no soldering is required to connect it to the rest of your boards. However, we still routed the I²C signals out to a set of 0.1”-spaced pins for users who prefer a soldered connection. You can also configure the board to communicate over SPI using the same 0.1″-spaced pins.

Features:

1. The BMP581 has a wide pressure sensing range (30 to 125kPa)
2. The sensor includes a configurable oversampling setting, FIFO buffer for storing up to 32 pressure samples
3. This allows you to customize the performance based on your application’s requirements.
4.  Even without filtering, the BMP581 has very low noise (< 0.1Pa RMS)

Package Includes:

1 x SparkFun Pressure Sensor – BMP581 (Qwiic)
