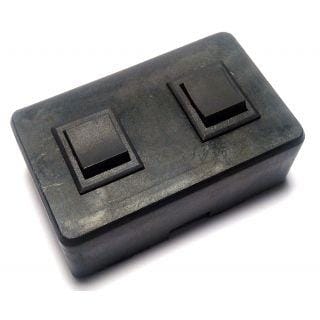

This is Robotics Switch Box Enclosure With DPDT Switches.

The switch box is used to accommodate two DPDT Rocker Switches. It is a perfect makeshift remote for your robot.

This is Remote Control Box for Wired Hobby Robot Control. To make the anti-clockwise motion of the motor, the polarity of supply must be inverted in a clockwise motion. For “Polarity Reversal” DPDT switches are generally used.

A Double Pole Double Throw (DPDT) switch is an electromechanical switch that has 2 inputs and 4 outputs and each input has 2 corresponding outputs that it can connect to.

Applications

Remote controlled robot.
AVR based robotics projects.
ARM based robotics projects.
PIC based robotics projects.
Arduino based robotics projects.
Raspberry-pi based robotics projects.
Android based robotic projects.

Featutres :

1. Homopolymer.
2. Good Processability.
3. Good Impact Resistance.
4. Good Stiffness.
5. Switched will directly snap fit into slots.
6. Switches are ROCKER TYPE ( They will retain central Position once force is removed from them .
7. Flush mounting DPDT rocker switch
8. For Linear Actuators and other DC Motors
9. 3 position switch

Package Includes :

2 x Switch Box

4 x DPDT Rocker Switch
