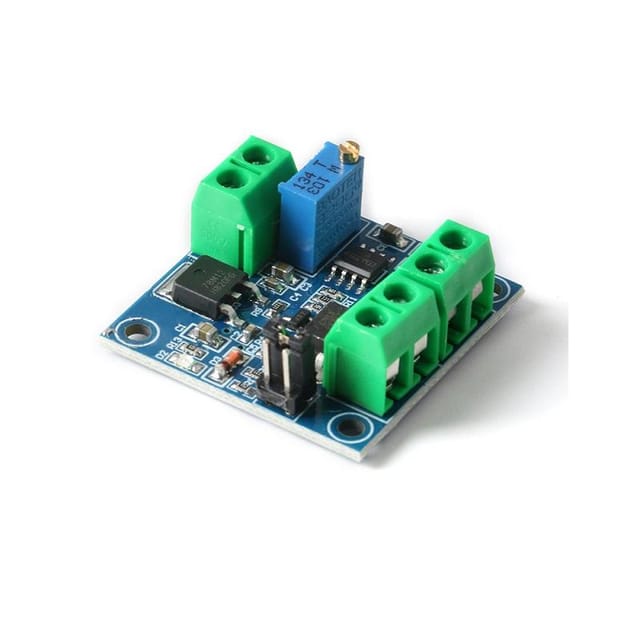

PWM to Voltage 0-100% to-10V Converter Module
PWM To Voltage Module can convert PWM digital signals into 0 to 10V analog signals. This product can be used in the PLC or other industrial panel switch signal interface by adjusting the PWM duty ratios to adjust the output voltage. Module size is small, easy to apply in different places.
Pin Definition:
  1. VCC -Working power 12-30V
  2. GND -Ground
  3. PWM – Input PWM signal positive
  4. GND -Input voltage ground
  5. VOUT-Output voltage: 0-10V
  6. GND – Output ground
Application:
  • This product can be used in the PLC or other industrial panel switch signal interface by adjusting the PWM duty ratios to adjust the output voltage

Features:

  1. Using single-chip embedded technology
  2. Easy to operate, can be fine-tuned by potentiometer
  3. Select the PWM signal input level range through the short cap
  4. The module is small, easy to carry and use
  5. PWM signal input level range: The peak of 4.5V to 10V level. The short cap installs in ‘5V’. This level is used for the normal controllers or 5V MCU. Insert jumper in the inner side.
  6. PWM signal input level range: The peak of 12V to 24V level, so inserted in 24V. The short cap installs in ‘24V’. This level is used for normal PLC controllers. Insert jumper in the outer side.

Package Includes:

1 x PWM to Voltage 0-100% to-10V Converter Module

TT-RB-975824
in stockINR 109
1 1

PWM to Voltage 0-100% to-10V Converter Module

Sku: TT-RB-975824
