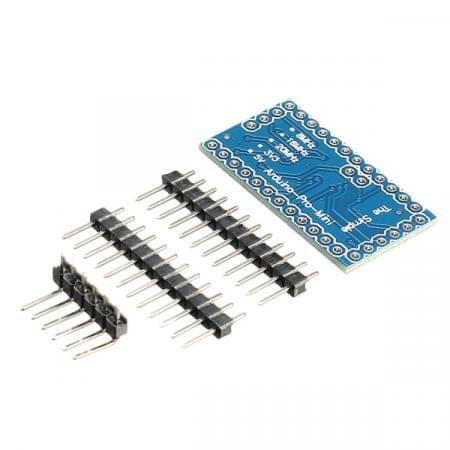

Pro Mini ATMEGA328P 3.3V/8M (Official Version)

Description of product

Decription

This is Pro Mini ATMEGA328P 3.3V/8MHz is a 3.3V Arduino running the 8MHz bootloader. Pro Mini ATMEGA328P come with connectors so that you can solder connector or wire with any orientation you need. We recommend the first time Arduino users start with the Uno R3.

It’s a great board that will get you up and running quickly. The Arduino Pro series is meant for users that understand the limitations of system voltage (3.3V), lack of connectors, and USB off board.

The Pro Mini is a microcontroller board base on the ATmega328.  It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, an on-board resonator, a reset button, and holes for mounting pin headers.

A six pin header can be connected to an FTDI cable to provide USB power and communication to the board. The Pro Mini is intended for semi-permanent installation in objects or exhibitions. The board comes with headers, allowing the use of various types of connectors or direct soldering of wires. The pin layout is compatible with the Mini Arduino.

There is two versions of the Pro Mini. One runs at 3.3V and 8 MHz, the other at 5V and 16 MHz. To buy 5V/16MHz Pro Mini click on the name below

Pro Mini 5V/16MHz

Features

  1. 8 analog input port: A0 ~ A7.
  2. A pair of TTL level serial port transceiver : RX / TX.
  3. 6 PWM port: D3, D5, D6, D9, D10, D11.
  4. Use For Atmel Atmega328P-AU microcontroller.
  5. Support serial download.
  6. Support 9V battery.
