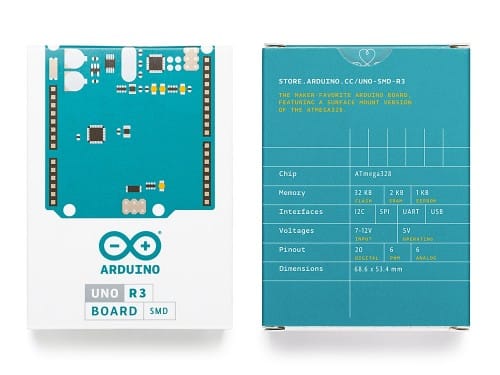

5f742a27eb374c8a96da74cd ARDUINO UNO REV3 SMD https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/5f742900b0453226f3f1b53f/a000073_box_1.jpg

The Arduino Uno Rev3 SMD is a microcontroller board based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator (CSTCE16M0V53-R0), a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

The Uno differs from all preceding boards in that it does not use the FTDI USB-to-serial driver chip.

 Additional features coming with the R3 version are:

  • ATmega16U2 instead 8U2 as USB-to-Serial converter.
  • 1.0 pinout: added SDA and SCL pins for TWI communication placed near to the AREF pin and two other new pins placed near to the RESET pin, the IOREF that allow the shields to adapt to the voltage provided from the board and the second one is a not connected pin, that is reserved for future purposes.
  • stronger RESET circuit.

 "Uno" means "One" in Italian and is named to mark the upcoming release of Arduino 1.0. The Uno and version 1.0 will be the reference versions of Arduino, moving forward. The Uno is the latest in a series of USB Arduino boards, and the reference model for the Arduino platform.

MicrocontrollerATmega328P
Operating Voltage5V
Input Voltage (recommended)7-12V
Input Voltage (limit)6-20V
Digital I/O Pins14 (of which 6 provide PWM output)
PWM Digital I/O Pins6
Analog Input Pins6
DC Current per I/O Pin20 mA
DC Current for 3.3V Pin50 mA
Flash Memory32 KB (ATmega328P) of which 0.5 KB used by bootloader
SRAM2 KB (ATmega328P)
EEPROM1 KB (ATmega328P)
Clock Speed16 MHz
LED_BUILTIN13
Length68.6 mm
Width53.4 mm
Weight25 g
TT-ARS-A000073
in stockINR 3037.32
Arduino
1 1
ARDUINO UNO REV3 SMD

ARDUINO UNO REV3 SMD

Sku: TT-ARS-A000073
₹3,037.32


Sold By: tenettech
Features
  • Shipping in 10-12 Working days

Description of product

The Arduino Uno Rev3 SMD is a microcontroller board based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator (CSTCE16M0V53-R0), a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

The Uno differs from all preceding boards in that it does not use the FTDI USB-to-serial driver chip.

 Additional features coming with the R3 version are:

  • ATmega16U2 instead 8U2 as USB-to-Serial converter.
  • 1.0 pinout: added SDA and SCL pins for TWI communication placed near to the AREF pin and two other new pins placed near to the RESET pin, the IOREF that allow the shields to adapt to the voltage provided from the board and the second one is a not connected pin, that is reserved for future purposes.
  • stronger RESET circuit.

 "Uno" means "One" in Italian and is named to mark the upcoming release of Arduino 1.0. The Uno and version 1.0 will be the reference versions of Arduino, moving forward. The Uno is the latest in a series of USB Arduino boards, and the reference model for the Arduino platform.

MicrocontrollerATmega328P
Operating Voltage5V
Input Voltage (recommended)7-12V
Input Voltage (limit)6-20V
Digital I/O Pins14 (of which 6 provide PWM output)
PWM Digital I/O Pins6
Analog Input Pins6
DC Current per I/O Pin20 mA
DC Current for 3.3V Pin50 mA
Flash Memory32 KB (ATmega328P) of which 0.5 KB used by bootloader
SRAM2 KB (ATmega328P)
EEPROM1 KB (ATmega328P)
Clock Speed16 MHz
LED_BUILTIN13
Length68.6 mm
Width53.4 mm
Weight25 g
