The PIC K150 USB Automatic Develop Microcontroller Programmer With ICSP Cable is a low-cost high-performance PIC programmer. This supports most popular PIC chips, programmed, readout, encryption, use a high-speed USB communication, fast programming.

The programming quality is stable and reliable. (speed average PICSTART + 3-5 times) fully automatic programming checksum. This is equipped with 40pin DIP programming Block, direct programming of 8pin – 40pin DIP chip. 8 pin-40 pin chip other than through the onboard the ICSP interface online to download software.

Software-compatible with PIC K150 is the Windows98 and Windows2000/NT, Windows XP/windows7/ Windows 8/ Windows 10 operating system. The new device will vary with the PIC escalating. Master chip retains the DIP package with the seat.

Note: This programmer module is compatible with 4 mm to 10 mm IC body width, we have another varient of this product for 4mm IC body width Click here

PIC MCU models supported

10 Series
PIC10F200, PIC10F202, PIC10F204, PIC10F206, PIC10F220, PIC10F222

12C Series
PIC12C508, PIC12C508A, PIC12C509, PIC12C509A, PIC12C671, PIC12C672, PIC12CE518, PIC12CE519,PIC12CE673, PIC12CE674

12F Series
PIC12F508, PIC12F509, PIC12F629, PIC12F635, PIC12F675, PIC12F683

16C Series
PIC16C505, PIC16C554, PIC16C558, PIC16C61, PIC16C62, PIC16C62A, PIC16C62B, PIC16C63, PIC16C63A, PIC16C64, PIC16C64A, PIC16C65, PIC16C65A, PIC16C65B, PIC16C66, PIC16C66A, PIC16C67, PIC16C620, PIC16C620A, PIC16C621, PIC16C621A, PIC16C622, PIC16C622A, PIC16C71,PIC16C71A, PIC16C72, PIC16C72A, PIC16C73, PIC16C73A, PIC16C73B, PIC16C74, PIC16C74A, PIC16C74B, PIC16C76, PIC16C77, PIC16C710, PIC16C711, PIC16C712, PIC16C716, PIC16C745, PIC16C765, PIC16C773, PIC16C774, PIC16C83, PIC16C84

16F Series
PIC16F505, PIC16F506, PIC16F54, PIC16F57, PIC16F59, PIC16F627, PIC16LF627A, PIC16F627A, PIC16F628, PIC16LF628A, PIC16F628A, PIC16F630, PIC16F631, PIC16F631-1, PIC16F636, PIC16F636-1, PIC16F639, PIC16F639-1, PIC16F648A, PIC16F676, PIC16F677, PIC16F677-1, PIC16F684, PIC16F685, PIC16F685-1, PIC16F687, PIC16F687-1, PIC16F688, PIC16F689, PIC16F689-1, PIC16F690, PIC16F690-1, PIC16F716, PIC16F72, PIC16F73, PIC16F74, PIC16F76, PIC16F77, PIC16F737, PIC16F747, PIC16F767, PIC16F777, PIC16F83, PIC16F84, PIC16F84A, PIC16F87, PIC16F88, PIC16F818, PIC16F819, PIC16F870, PIC16F871, PIC16F872, PIC16F873, PIC16F873A, PIC16LF873A, PIC16F874, PIC16F874A, PIC16F876, PIC16F876A, PIC16F877, PIC16F877A.

18 Series
PIC18F242 PIC18F248 PIC18F252 PIC18F258 PIC18F442 PIC18F448
PIC18F452 PIC18F458 PIC18F1220 PIC18F1320 PIC18F2220 PIC18F2320
PIC18F2321 PIC18F4210 PIC18F2331 PIC18F2450 PIC18F2455 PIC18F2480
PIC18F2510 PIC18F2515 PIC18F2520 PIC18F2550 PIC18F2580
PIC18F2585 PIC18F2610 PIC18F2620 PIC18F2680 PIC18F4220 PIC18F4320
PIC18F6525 PIC18F6621 PIC18F8525 PIC18F8621 PIC18F2331 PIC18F2431
PIC18F4331 PIC18F4431 PIC18F2455 PIC18F2550 PIC18F4455 PIC18F4580 PIC18F2580 PIC18F2420 PIC18F2520 PIC18F2620 PIC18F6520 PIC18F6620 PIC18F6720 PIC18F6585 PIC18F6680 PIC18F8585 PIC18F8680

Features :

1. Support the most popular programming PIC chips, read, encryption and other features!
2. No external power supply, communication, and power is only a USB cable to print complete, without any cable.
3. PICSTARTPLUS much faster rate than programming.
4. Can easily read the contents of the chip program area.
5. Automatic programming verification.
6. Comprehensive information prompts, allowing users to understand the working state.
7. With 40pin ZIF programming of the seat, can be directly programmed in 8-pin to 40 pin PIC microcontroller chip can be programmed Using ICSP online or add conversion blocks. 8 pin 40 pin-board outside the chip can be downloaded directly online ICSP output.
8. Compatible with Windows98 and Windows2000/NT, Windows XP / Windows 7 and some other operating systems.
9. Programming software provides easy to use instructions.
10. Can not program CIs from family 18F

Useful Links:

Getting started with K150 USB PIC Programmer and Software Download

For programming,  please refer the video in Video tab.

Note:   You  may need to update  the Prolific  USB to Serial  driver if it shows “Phased out since 2012” when it is connected to PC.   You need to use the driver of version 3.3.11.152. Update it by using the mentioned version.

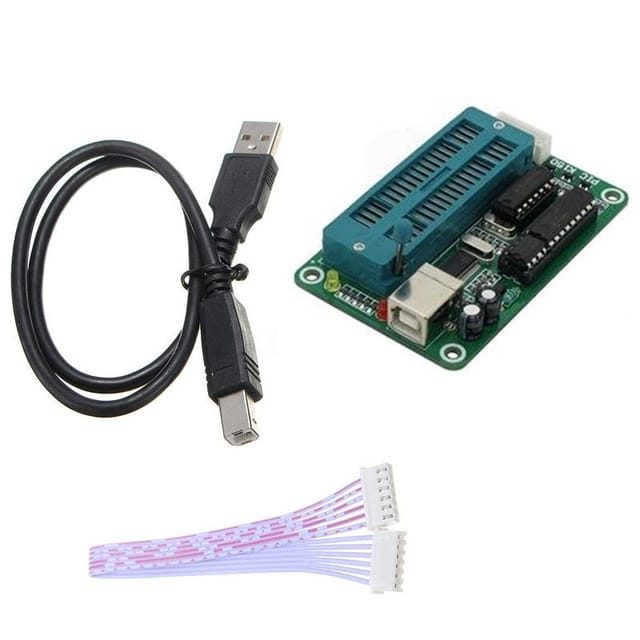

Package Includes :

1 x PIC K150 USB Automatic Programming Develop Microcontroller Programmer Board with Spacer.
1 x ICSP cable.
1 x USB cable.

Note: This programmer module is compatible with 4 mm to 10mm IC body width.
