6891c076a2da328a91df952e PC817 4 CH Optocoupler Isolation Module https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6891c077a2da328a91df9530/pc817-4-ch-optocoupler-isolation-module-4.png
This is a PC817 4 Channel Optocoupler Isolation Board. Onboard with 4-Channel 817 are independent, so they can achieve different voltage control at the same time. Using 4-way 817 optocoupler, to achieve the control signal and the control signal isolation, you can directly use the microcontroller or other devices IO port to achieve voltage isolation control, you can achieve a small voltage control, the control side can be an external transistor MOS tube or different voltage levels Of the device interface.
Applications:
  1. I/O Isolation for MCUs (Micro Controller Units)
  2. Noise Suppression in Switching Circuits
  3. Signal Transmission Between Circuits of Different Potentials and Impedances

Features:

  1. Driving Port Signal Voltage: 3.6-24V
  2. Output Port Voltage Port: 3.6-30V
  3. Output Can Be Switched From Pull-Up or Pull-Down With Jumpers.

Package Includes:

1 x PC817 4 CH Optocoupler Isolation Module

 TT-RB-890215
in stock INR 170
1 1

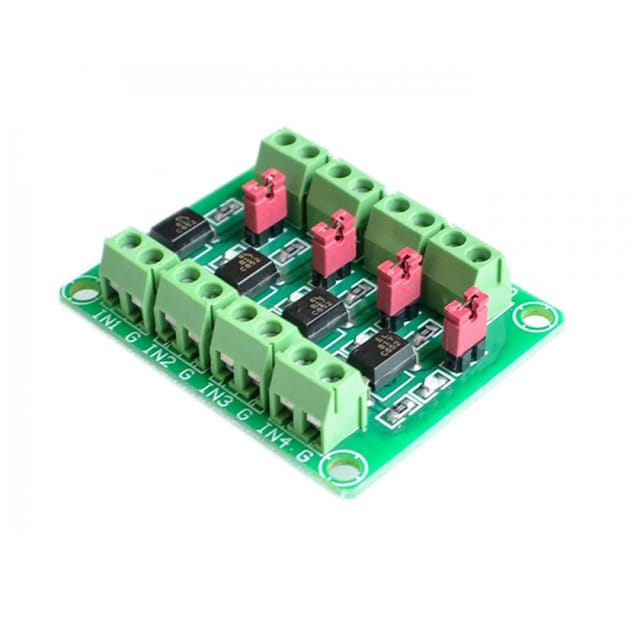

PC817 4 CH Optocoupler Isolation Module

Sku: TT-RB-890215
Be the first to review this product
₹170
Add to Cart Buy Now
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

This is a PC817 4 Channel Optocoupler Isolation Board. Onboard with 4-Channel 817 are independent, so they can achieve different voltage control at the same time. Using 4-way 817 optocoupler, to achieve the control signal and the control signal isolation, you can directly use the microcontroller or other devices IO port to achieve voltage isolation control, you can achieve a small voltage control, the control side can be an external transistor MOS tube or different voltage levels Of the device interface.
Applications:
  1. I/O Isolation for MCUs (Micro Controller Units)
  2. Noise Suppression in Switching Circuits
  3. Signal Transmission Between Circuits of Different Potentials and Impedances

Features:

  1. Driving Port Signal Voltage: 3.6-24V
  2. Output Port Voltage Port: 3.6-30V
  3. Output Can Be Switched From Pull-Up or Pull-Down With Jumpers.

Package Includes:

1 x PC817 4 CH Optocoupler Isolation Module
