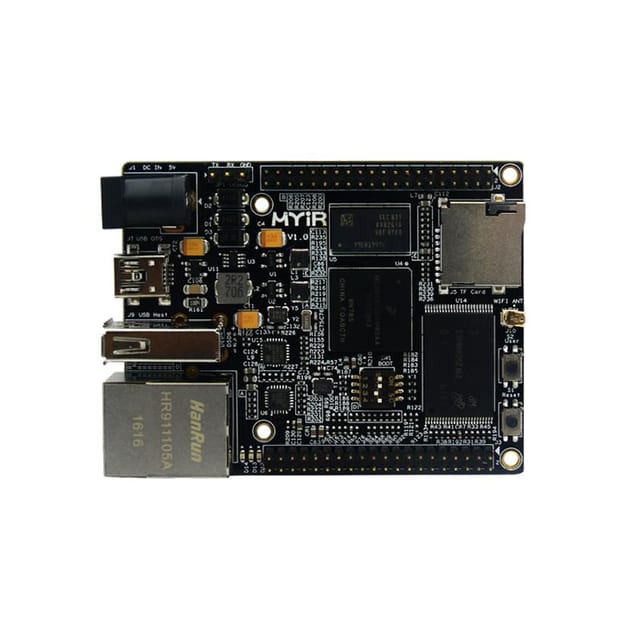

The MYIR MYS-6ULX-IOT is a compact, low-cost single-board computer designed for IoT and embedded applications. Powered by NXP’s i.MX 6ULL ARM Cortex-A7 processor at 528MHz, it integrates 256MB DDR3 RAM and 256MB NAND Flash, offering reliable performance in a 70mm x 55mm form factor. Built with rich peripheral interfaces including Ethernet, USB, MicroSD, and onboard WiFi, the board supports Linux 5.10.9 with Debian or Yocto.

Its Tenet Technetronicsst expansion options via 2×20-pin headers make it ideal for smart devices, gateways, or rapid prototyping. Optional add-ons such as an LCD display, camera, and expansion board enhance functionality for flexible deployment. The MYIR MYS-6ULX-IOT is purpose-built for IoT development, providing a stable platform with software source code, making it easy for developers to integrate into various connected solutions.

Note: Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.

Features:

1. ARM Cortex-A7 528 MHz iMX6ULL processor
2. 256MB DDR3 RAM and 256MB NAND Flash
3. Onboard WiFi module
4. Multiple interfaces: Ethernet, USB Host/Device, MicroSD, GPIO
5. Dual 2×20-pin headers for flexible expansion
6. Linux 5.10.9 support with Debian and Yocto with QT
7. Optional LCD and camera modules for extended use

Package Includes:

1 x MYIR MYS-6ULX-IOT Single Board Computer MCIMX6Y2DVM05A 256MB DDR3 256MB Nand

1 x Antenna

1 x User Mannual
