The Motoron M3H550 Triple Motor Controller for Raspberry Pi allows seamless control of up to three bidirectional brushed DC motors via an I²C interface. Designed for Raspberry Pi (Model B+ and newer), it operates within a voltage range of 1.8 V to 22 V, delivering continuous currents up to 1.7 A per motor.
Its stackable design enables multiple units to be combined for larger projects, while requiring only two GPIO pins for communication. Key features include configurable motion parameters, reverse-voltage protection, and a timeout feature for enhanced reliability. Motoron M3H550 controller is perfect for robotics and automation applications.
Features:
- Independent Control: Operates three motors simultaneously.
- Stackable Design: Multiple controllers can be stacked for larger projects.
- Easy Communication: Uses I²C, requiring only two GPIO pins.
- Configurable Parameters: Adjust acceleration, starting speed, and PWM frequency.
- Protection: Includes reverse-voltage protection and command timeout features.
Package include:

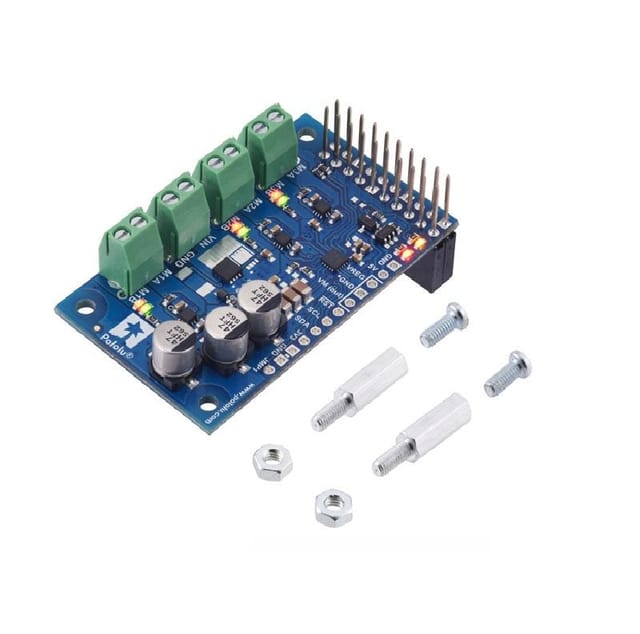

1 x Motoron M3H550 Triple Motor Controller for Raspberry Pi (Connectors Soldered)
