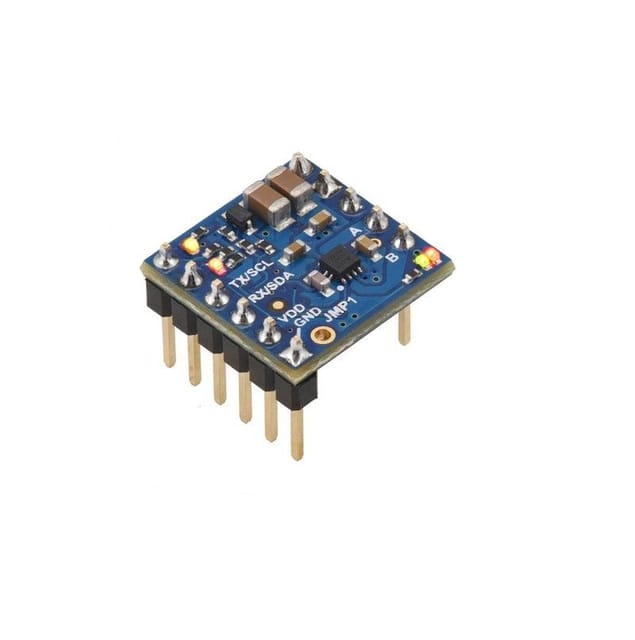

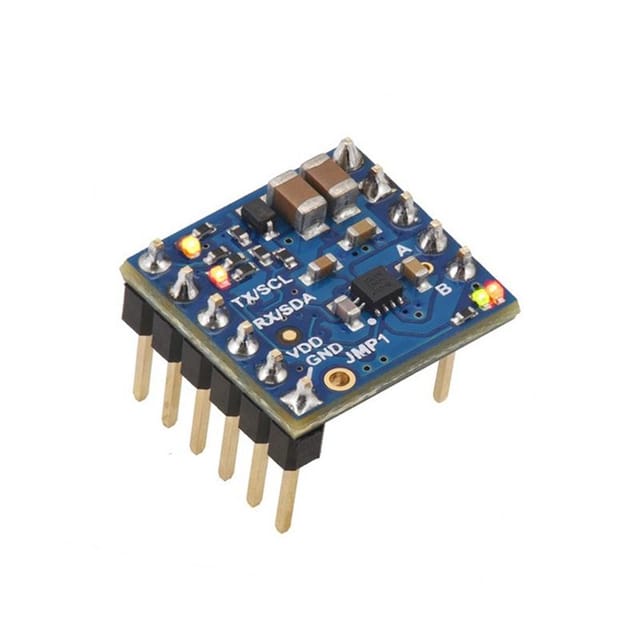

6899e62e61fdb5ea73a5e81a Motoron M1T550 Single I²C Motor Controller (Header Pins Soldered) https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/6899e62f61fdb5ea73a5e81c/a1.jpg

The Motoron M1T550 is a compact I²C motor controller designed for bidirectional control of a single brushed DC motor. Supporting supply voltages from 1.8 V to 22 V, it delivers up to 1.8 A continuously and 5 A peak for brief periods. This controller features reverse-voltage protection, two status LEDs, and programmable motion parameters.

It simplifies multi-motor setups by allowing multiple controllers on the same I²C bus without requiring PWM outputs. The M1T550 comes with soldered headers, making it user-friendly for various applications. Ideal for robotics and automation, it integrates seamlessly with Arduino and Python libraries.

Features:

  1. Single Motor Control: Controls one bidirectional brushed DC motor.
  2. Wide Voltage Range: Operates with supply voltages from 1.8 V to 22 V.
  3. Output Current: Delivers continuous output currents up to 1.8 A, with peak currents of 5 A for less than one second.
  4. I²C Interface: Uses I²C communication (up to 400 kHz), allowing multiple controllers on the same bus.
  5. Compact Size: Small form factor (0.6″ × 0.6″) for easy integration.
  6. Reverse-Voltage Protection: Protects against incorrect power supply connections.
  7. Configurable Parameters: Adjustable max acceleration, speed, and direction change delay.
  8. LED Indicators: Two status LEDs for monitoring motor and error conditions.
  9. Command Timeout: Stops the motor if no commands are received within a set time.

Package include:

1 x Motoron M1T550 Single I²C Motor Controller (Header Pins Soldered)

 TT-RB-R175406
in stock INR
1 1

Motoron M1T550 Single I²C Motor Controller (Header Pins Soldered)

Sku: TT-RB-R175406
Be the first to review this product
Product Enquiry
Contact Seller Contact Seller
Sold By: tenettech
Features
  • Shipping in 10-12 Working Days

Description of product

The Motoron M1T550 is a compact I²C motor controller designed for bidirectional control of a single brushed DC motor. Supporting supply voltages from 1.8 V to 22 V, it delivers up to 1.8 A continuously and 5 A peak for brief periods. This controller features reverse-voltage protection, two status LEDs, and programmable motion parameters.

It simplifies multi-motor setups by allowing multiple controllers on the same I²C bus without requiring PWM outputs. The M1T550 comes with soldered headers, making it user-friendly for various applications. Ideal for robotics and automation, it integrates seamlessly with Arduino and Python libraries.

Features:

  1. Single Motor Control: Controls one bidirectional brushed DC motor.
  2. Wide Voltage Range: Operates with supply voltages from 1.8 V to 22 V.
  3. Output Current: Delivers continuous output currents up to 1.8 A, with peak currents of 5 A for less than one second.
  4. I²C Interface: Uses I²C communication (up to 400 kHz), allowing multiple controllers on the same bus.
  5. Compact Size: Small form factor (0.6″ × 0.6″) for easy integration.
  6. Reverse-Voltage Protection: Protects against incorrect power supply connections.
  7. Configurable Parameters: Adjustable max acceleration, speed, and direction change delay.
  8. LED Indicators: Two status LEDs for monitoring motor and error conditions.
  9. Command Timeout: Stops the motor if no commands are received within a set time.

Package include:

1 x Motoron M1T550 Single I²C Motor Controller (Header Pins Soldered)
