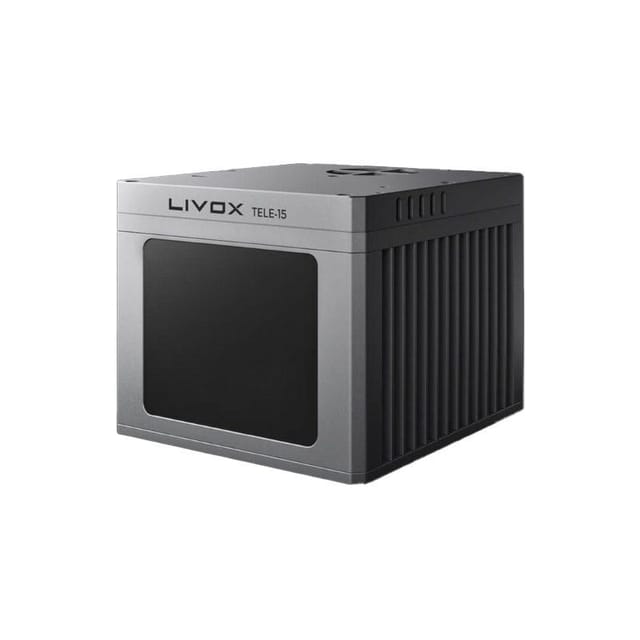

The Livox TELE-15 is a high-performance LiDAR sensor designed for long-distance detection, offering up to 500 meters of range. With ultra-high point cloud precision and angular precision of <0.03°, the TELE-15 ensures accurate object detection and obstacle avoidance, even at high speeds. Perfect for autonomous vehicles, it offers reliable performance with a MTTF of 40,000 hours and meets TÜV Rheinland safety certification for Class 1 eye safety.

Useful Links:

https://www.livoxtech.com/tele-15/downloads

Features:

1. Detection Range: 320 m @ 10% reflectivity, 500 m @ 50% reflectivity
2. Field of View: 14.5° x 16.2° (horizontal x vertical)
3. Range Precision: 2 cm at 20 m
4. Angular Precision: < 0.03°
5. Beam Divergence: 0.12° (vertical), 0.02° (horizontal)
6. Point Rate: 240,000 points/s (480,000 points/s with dual return)
7. Data Latency: ≤ 2 ms
8. IMU: Built-in BMI088
9. Operating Temperature: -40°F to 185°F (-40°C to 85°C)
10. IP Rating: IP67
11. Power Consumption: 12 W typical
12. Voltage: 10 ~ 15 V DC (with Converter: 9 ~ 30 V DC)
13. Data Port: 100 Mbps Ethernet
14. False Alarm Rate: < 0.01% at 100 klx

Package Includes:

1 x Livox TELE-15 Automotive LiDAR 500m Range
