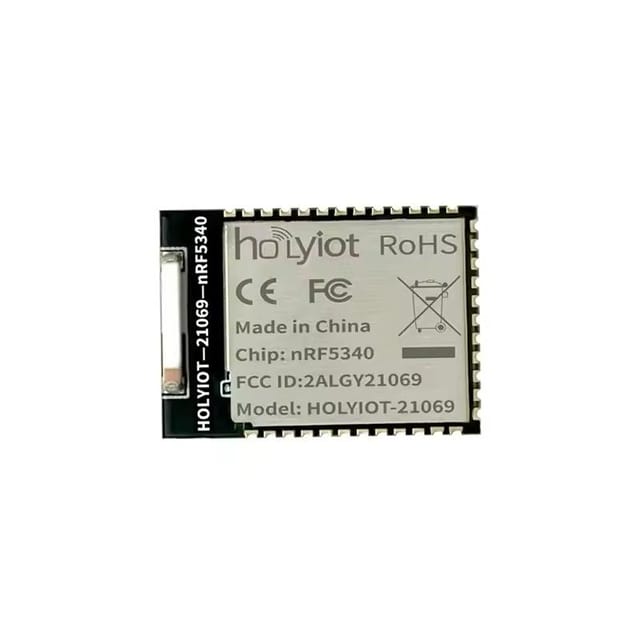

The HOLYIOT-21069 is a compact, ultra-low power wireless module based on the Nordic nRF5340 SoC. Featuring dual Arm Cortex-M33 processors, advanced security with Arm TrustZone and CryptoCell-312, and multiprotocol 2.4 GHz transceiver support, it’s ideal for LE Audio, IoT, wearables, and industrial applications. This consumption module Supporting Bluetooth 5.2, Zigbee, Thread, NFC, and proprietary protocols, it operates from -40°C to +105°C, offering Tenet Technetronicsst connectivity and processing capabilities in a 19mm x 13.5mm form factor.

Note: Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.

Features:

1. Dual Arm Cortex-M33 cores for application & network separation
2. Bluetooth 5.2, Zigbee, Thread, NFC, 802.15.4 & proprietary protocols
3. Ultra-low power operation with voltage input from 1.7 V to 5.5 V
4. Advanced Security: TrustZone & CryptoCell-312
5. Rich peripheral support: SPI, I2C, UART, ADC, PWM, I2S, PDM
6. Compact design: 19mm × 13.5mm with industrial temperature range (-40°C to +105°C)

Package Includes:

1 x Holyiot 21069, nRF5340 Wearable Devices Smart Home Ultra-low Power Consumption Module
