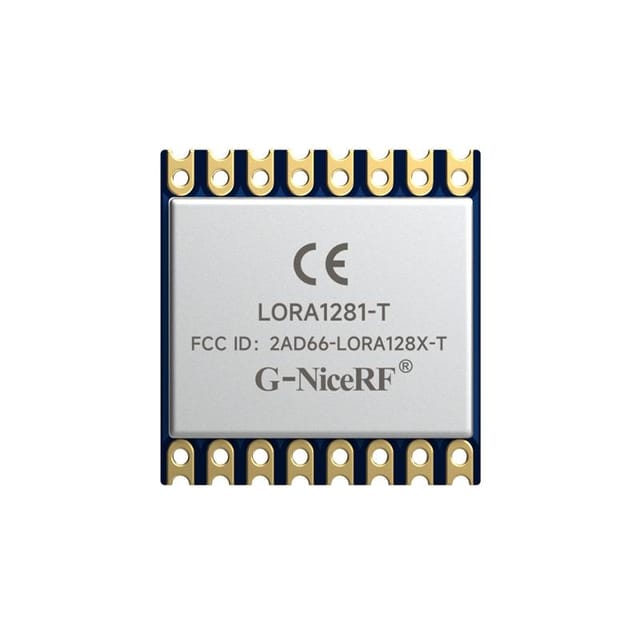

The G-NiceRF LoRa128X-T : SX1280/SX1281 module is a high-performance 2.4 GHz transmitter and receiver designed for long-range, low-power communication. Powered by Semtech’s SX1280/SX1281 RF chip, it utilizes LoRa modulation for improved range and better sensitivity than typical 2.4 GHz modules. The G-NiceRF LoRa128X-T : SX1280/SX1281 module supports a 0.5ppm TCXO (temperature-compensated crystal oscillator) for precise frequency stability, even in extreme temperature conditions, making it suitable for harsh environments.

Features:

1. Operating Frequency Range: 2400-2500 MHz
2. Dual Certification: CE & FCC
3. Operating Temperature Range: -40°C to +85°C
4. Data Transfer Rate: 0.476 – 202 Kbps (LoRa)
5. Maximum Output Power: 12.5 dBm
6. Sensitivity: -132 dBm @ LoRa
7. Modulation: LoRa, FLRC, FSK
8. FIFO: 256 bytes
9. Crystal Oscillator: 0.5 ppm TCXO / 10 ppm
10. Operating Voltage Range: 1.8V – 3.7V
11. Applications: Wireless remote, smart home, toy control, health monitoring, tire pressure monitoring

Package Includes:

1 x G-NiceRF LoRa128X-T : SX1280/SX1281 2.4GHz FCC ID & CE-RED Certified TCXO Ranging Module
