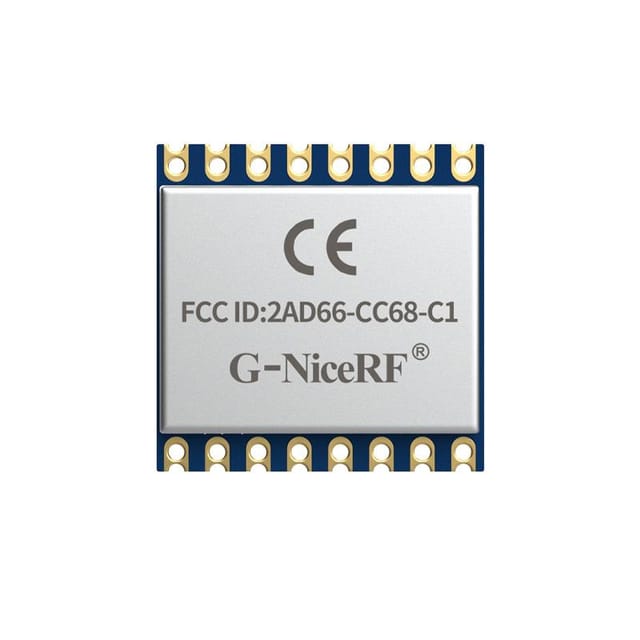

The G-NiceRF CC68-C1-868/915 LoRa Module is a high-performance, FCC ID & CE-RED certified LoRa module designed for industrial IoT applications. Powered by Semtech’s LLCC68 chipset and equipped with an industrial-grade high-precision crystal oscillator, this module offers exceptional performance with ultra-low receiving current and low sleep current. It boasts impressive sensitivity of -129 dBm, ensuring reliable communication even in challenging environments. With an output power of 22 dBm (160 mW) and a customizable frequency range (433 MHz, 470 MHz, 868 MHz, 915 MHz, and more), the CC68-C1 is ideal for long-range, low-power IoT solutions.

Features:

1. Frequency Band: 433/490/868/915 MHz (customizable 150-960 MHz)
2. Sensitivity: -129 dBm @ LoRa
3. Output Power: 22 dBm (160 mW)
4. Modulation: LoRa, (G)FSK
5. Data Rate: 0.6-300 Kbps @ FSK, 1.76-62.5 Kbps @ LoRa
6. FIFO Buffer: 255 bytes
7. Industrial-Grade Crystal Oscillator: High precision for stability
8. Low Power Consumption: Ultra-low receiving and sleep current
9. Integrated Antenna Switch: Controlled by RF chip
10. Certifications: FCC ID, CE-RED
11. RoHS & REACH Compliant: Lead-free production
12. Built-in 64kHz Oscillator: Periodically wakes external microcontroller
13. Applications: Industrial metering, smart cities, agriculture, logistics, security, and more.

Package Includes:

1 x G-NiceRF CC68-C1-868/915 : LLCC68 FCC ID & CE-RED Certified LoRa Module With SPI Interface
