EX-F02x-Q100 Standard, C8051F Development Board
SHOP FOR
https://www.tenettech.com
# 2514/U, 7th 'A' Main Road, Opp. to BBMP Swimming Pool, Hampinagar, Vijayanagar 2nd Stage. 560104 Bangalore IN
Tenettech E-Store
# 2514/U, 7th 'A' Main Road, Opp. to BBMP Swimming Pool, Hampinagar, Vijayanagar 2nd Stage. Bangalore, IN
+918023404924 https://cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.settings/5256837ccc4abf1d39000001/webp/59dafe26aef6e1d20402c4c3-480x480.png" info@tenettech.com
5d70e40d3f42157b048450fb EX-F02x-Q100 Standard, C8051F Development Board https://cdn1.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5d70e40d3f42157b048450fb/images/5d70e40d3f42157b048450fc/5d70e3b342317f7bf5baf44f/webp/5d70e3b342317f7bf5baf44f.jpg

Description

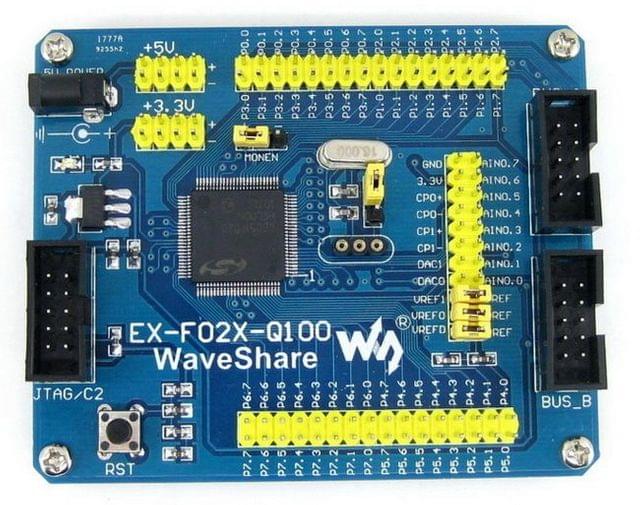

A development board for the C8051F02x series microcontrollers, such as C8051F020, C8051F022. It is designed to give designers a quick start to develop code on these devices.

This development board comes with the C8051F020 chip in TQFP100 package.

Features

  • Power
    • Powered from 5V DC jack using an onboard 3.3V regulator AMS1117
    • Power input/output pin headers
      • spare power input port
      • convenient for providing power supply to other board/device if necessary
  • Onboard Chips
    • C8051F020 (TQFP100), the C8051F Microcontroller
    • AMS1117-3.3, on board regulator
  • Interfaces
    • JTAG/C2 port for programming/debuging
    • BUS-A & BUS-B, for connecting to the expansion board DVK501, ease to study/develop various peripheral devices
  • Human to Machine Interface
    • Reset button, used to reset the system
    • Power indicator LED
  • Other Features
    • VDD Monitor enable/disable jumper connected to the MONEN pin
    • AD/DA voltage reference jumper
    • External crystal configurable
      • there is a jumper for selecting on board 16M crystal or custom crystal mounted via the socket
    • All the MCU pins are accessible on expansion connectors for further expansion
    • All the pins are clearly marked on the PCB. These marks provide the basic information on the pins
