5d70dd87be8fa35b2926484b EX-F02x-Q100 Premium, C8051F Development Board https://www.tenettech.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5d70dd87be8fa35b2926484b/images/5d70dd87be8fa35b2926484e/5d70dd29e5ff38212f1adc52/5d70dd29e5ff38212f1adc52.jpg

Description:

connecting the two boards

A complete starter kit and development system for the C8051F02x series microcontrollers, such as C8051F020, C8051F022. It is designed to give designers a quick start to develop code on these devices.

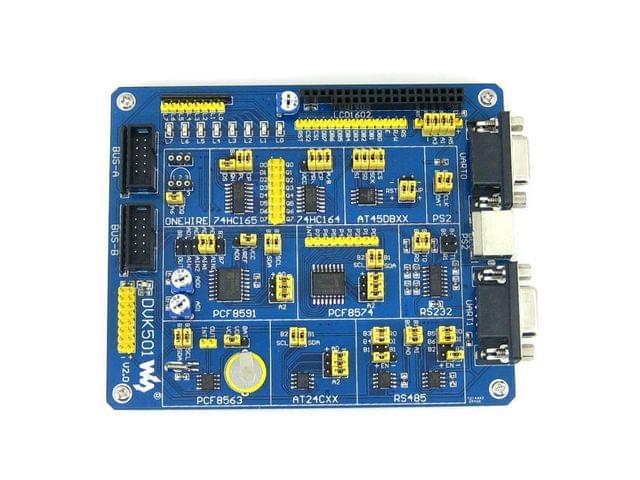

This development system contains a main development board with the C8051F020 chip in TQFP100 package, and an additional expansion board with various peripheral devices.

The BUS-A & BUS-B headers located on both boards should be used to connect the two boards via 10-pin cables, which are delivered with the product. As shown in the figure right.

Features:

EX-F02x-Q100

  • Power
    • Powered from 5V DC jack using an onboard 3.3V regulator AMS1117
    • Power input/output pin headers
      • spare power input port
      • convenient for providing power supply to other board/device if necessary
  • Onboard Chips
    • C8051F020 (TQFP100), the C8051F Microcontroller
    • AMS1117-3.3, on board regulator
  • Interfaces
    • JTAG/C2 port for programming/debuging
    • BUS-A & BUS-B, for connecting to the expansion board DVK501, ease to study/develop various peripheral devices
  • Human to Machine Interface
    • Reset button, used to reset the system
    • Power indicator LED
  • Other Features
    • VDD Monitor enable/disable jumper connected to the MONEN pin
    • AD/DA voltage reference jumper
    • External crystal configurable
      • there is a jumper for selecting on board 16M crystal or custom crystal mounted via the socket
    • All the MCU pins are accessible on expansion connectors for further expansion
    • All the pins are clearly marked on the PCB. These marks provide the basic information on the pins
TT-WSB-3643
in stockINR 8229.32
GENERIC
1 1
EX-F02x-Q100 Premium, C8051F Development Board

EX-F02x-Q100 Premium, C8051F Development Board

Sku: TT-WSB-3643
₹8,229.32


Sold By: tenettech
Features
  • Shipping in 10-12 Working days
  • http://cdn.storehippo.com/s/59c9e4669bd3e7c70c5f5e6c/ms.products/5d70dd87be8fa35b2926484b/images/5d70dd87be8fa35b2926484c/5d70dd1bae08605b5d2a4b45/5d70dd1bae08605b5d2a4b45.jpg

Description of product

Description:

connecting the two boards

A complete starter kit and development system for the C8051F02x series microcontrollers, such as C8051F020, C8051F022. It is designed to give designers a quick start to develop code on these devices.

This development system contains a main development board with the C8051F020 chip in TQFP100 package, and an additional expansion board with various peripheral devices.

The BUS-A & BUS-B headers located on both boards should be used to connect the two boards via 10-pin cables, which are delivered with the product. As shown in the figure right.

Features:

EX-F02x-Q100

  • Power
    • Powered from 5V DC jack using an onboard 3.3V regulator AMS1117
    • Power input/output pin headers
      • spare power input port
      • convenient for providing power supply to other board/device if necessary
  • Onboard Chips
    • C8051F020 (TQFP100), the C8051F Microcontroller
    • AMS1117-3.3, on board regulator
  • Interfaces
    • JTAG/C2 port for programming/debuging
    • BUS-A & BUS-B, for connecting to the expansion board DVK501, ease to study/develop various peripheral devices
  • Human to Machine Interface
    • Reset button, used to reset the system
    • Power indicator LED
  • Other Features
    • VDD Monitor enable/disable jumper connected to the MONEN pin
    • AD/DA voltage reference jumper
    • External crystal configurable
      • there is a jumper for selecting on board 16M crystal or custom crystal mounted via the socket
    • All the MCU pins are accessible on expansion connectors for further expansion
    • All the pins are clearly marked on the PCB. These marks provide the basic information on the pins
